CD54HCT688F3A

Features: • Cascadable• Fanout (Over Temperature Range)- Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads- Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads• Wide Operating Temperature Range . . . -55oC to 125oC• Balanced Propagation Delay and Transit...

product image

CD54HCT688F3A Picture
See larger image
SeekIC No. : 004311818 Detail

CD54HCT688F3A: Features: • Cascadable• Fanout (Over Temperature Range)- Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads- Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads•...

CD54HCT688F3A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CD54HCT688F3A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Cascadable
• Fanout (Over Temperature Range)
- Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads
- Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads
• Wide Operating Temperature Range . . . -55oC to 125oC
• Balanced Propagation Delay and Transition Times
• Significant Power Reduction Compared to LSTTL Logic ICs
• HC Types
- 2V to 6V Operation
- High Noise Immunity: NIL = 30%, NIH = 30%of VCC at VCC = 5V
• HCT Types
- 4.5V to 5.5V Operation
- Direct LSTTL Input Logic Compatibility,
  VIL= 0.8V (Max), VIH = 2V (Min)
- CMOS Input Compatibility, Il 1A at VOL, VOH


Pinout

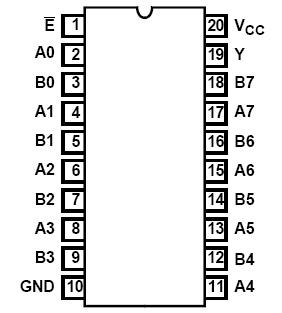

Connection Diagram


Specifications

DC Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to 7V
DC Input Diode Current, IIK
For VI < -0.5V or VI > VCC + 0.5V . . . . . . . . . . . . . . . . . . . . ±20mA
DC Output Diode Current, IOK
For VO < -0.5V or VO > VCC + 0.5V . . . . . . . . . . . . . . . . . . . ±20mA
DC Output Source or Sink Current per Output Pin, IO
For VO > -0.5V or VO < VCC + 0.5V . . . . . . . . . . . . . . . . . . . ±25mA
DC VCC or Ground Current, ICC or IGND . . . . . . . . . . . . . . . . ±50mA


Description

The 'HC688 and 'HCT688 are 8-bit magnitude comparators designed for use in computer and logic applications that require the comparison of two 8-bit binary words. When the compared words are equal the output (Y) is low and can be used as the enabling input for the next device in a cascaded application.
