CD54ACT280

Features:

Typical Propagation Delay
  - 6ns at V_CC = 5V, T_A = 25, C_L = 50pF
• Exceeds 2kV ESD Protection MIL-STD-883, Method 3015
• SCR-Latchup-Resistant CMOS Process and Circuit Design
• Speed of Bipolar FAST™/AS/S with Significantly Reduced Power Consumption
• Balanced Propagation Delays
• AC Types Feature 1.5V to 5.5V Operation and Balanced Noise Immunity at 30% of the Supply
• ±24mA Output Drive Current
  - Fanout to 15 FAST™ ICs
  - Drives 50W Transmission Lines

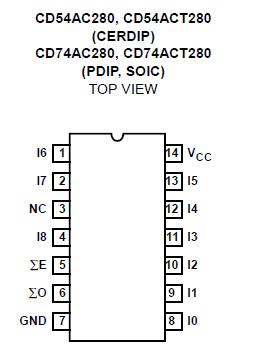

Pinout




Specifications

DC Supply Voltage, V_CC . . . . . . . . . . . . . . . . . . . . . . .  . -0.5V to 6V
DC Input Diode Current, I_IK
For V_I < -0.5V or V_I > V_CC + 0.5V . . . . . . . . . . . . . . .  . . . . .±20mA
DC Output Diode Current, I_OK
For V_O < -0.5V or V_O > V_CC + 0.5V . . . . . . . . . . . . . . . . . .. .±50mA
DC Output Source or Sink Current per Output Pin, I_O
For V_O > -0.5V or V_O < V_CC + 0.5V . . . . . . . . . . . . . . . .     . .±50mA
DC V_CC or Ground Current, I_CC or I_GND (Note 3) . . . . . .  . .±100mA


Description

The 'AC280 and 'ACT280 are 9-bit odd/even parity generator/checkers that utilize Advanced CMOS Logic technology. Both even and odd parity outputs are available for checking or generating parity for words up to nine bits long. Even parity is indicated (O output is HIGH)when an even number of data inputs is HIGH. Odd parity is indicated (E output is HIGH) when an odd number of data inputs is HIGH. Parity checking for words larger than nine bits can be accomplished by tying the E output to any input of an additional 'AC280, 'ACT280 parity checker.
