CD54ACT02

Features: • Typical Propagation Delay - 6ns at VCC = 5V, TA = 25, CL = 50pF• Exceeds 2kV ESD Protection MIL-STD-883, Method 3015• SCR-Latchup-Resistant CMOS Process and Circuit Design• Speed of Bipolar FAST™/AS/S with Significantly Reduced Power Consumption• Bal...

product image

CD54ACT02 Picture
See larger image
SeekIC No. : 004311551 Detail

CD54ACT02: Features: • Typical Propagation Delay - 6ns at VCC = 5V, TA = 25, CL = 50pF• Exceeds 2kV ESD Protection MIL-STD-883, Method 3015• SCR-Latchup-Resistant CMOS Process and Circuit Des...

CD54ACT02 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CD54ACT02
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Typical Propagation Delay
  - 6ns at VCC = 5V, TA = 25, CL = 50pF
• Exceeds 2kV ESD Protection MIL-STD-883, Method 3015
• SCR-Latchup-Resistant CMOS Process and Circuit Design
• Speed of Bipolar FAST™/AS/S with Significantly Reduced Power Consumption
• Balanced Propagation Delays
• AC Types Feature 1.5V to 5.5V Operation and Balanced Noise Immunity at 30% of the Supply
• ±24mA Output Drive Current
  - Fanout to 15 FAST™ ICs
  - Drives 50W Transmission Lines

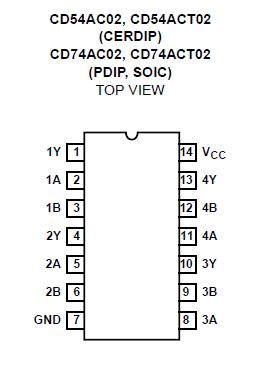

Pinout

Connection Diagram


Specifications

DC Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . .  . -0.5V to 6V
DC Input Diode Current, IIK
For VI < -0.5V or VI > VCC + 0.5V . . . . . . . . . . . . . . .  . . . . .±20mA
DC Output Diode Current, IOK
For VO < -0.5V or VO > VCC + 0.5V . . . . . . . . . . . . . . . . . .. .±50mA
DC Output Source or Sink Current per Output Pin, IO
For VO > -0.5V or VO < VCC + 0.5V . . . . . . . . . . . . . . . .  .  . .±50mA
DC VCC or Ground Current, ICC or IGND (Note 3) . . . . . .  . .±100mA


Description

The 'AC02 and 'ACT02 are quad 2-input NOR gates that utilize Advanced CMOS Logic technology.
