Features:

• High Voltage Type (20V Rating)
• Cascadable in Multiples of 4-Bits
• Set to "9" Input and "9" Detect Output
• 100% Tested for Quiescent Current at 20V
• 5V, 10V and 15V Parametric Ratings
• Maximum Input Current of 1A at 18V Over Full Package
Temperature Range; 100nA at 18V and +25oC
• Noise Margin (Over Full Package/Temperature Range)
      1V at VDD = 5V
      2V at VDD = 10V
      2.5V at VDD = 15V
• Standardized Symmetrical Output Characteristics
• Meets All Requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"




Application

• Numerical Control
• Instrumentation
• Digital Filtering
• Frequency Synthesis



Pinout

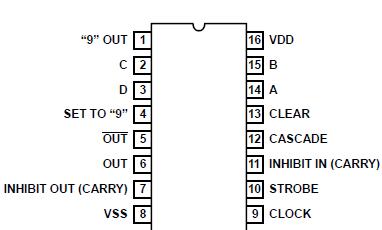

  Connection Diagram


Specifications

DC Supply Voltage Range, (VDD)..0.5V to +20V (Voltage Referenced to VSS Terminals)
Input Voltage Range, All Inputs .....................................................-0.5V to VDD +0.5V
DC Input Current, Any One Input.......................................................................±10mA
Operating Temperature Range ................. -55 to +125 Package Types D, F, K, H
Storage Temperature Range (TSTG).................................................. -65 to +150
Lead Temperature (During Soldering) ............................................................. +265
At Distance 1/16 ± 1/32 Inch (1.59mm ± 0.79mm) from case for 10s Maximum



Description

CD4527BMS is a low power 4-bit digital rate multiplier that provides an output pulse rate which is the clock input pulse rate multiplied by 1/10 times the BCD input. For example, when the BCD input is 8, there will be 8 output pulses for every 10 input pulses. CD4527BMS may be used to perform arithmetic operations (add, subtract, divide, raise to a power), solve algebraic and differential equations, generate natural logarithms and trigonometric functions, A/D and D/A conversion, and frequency division.

For fractional multipliers with more than one digit, CD4527BMS devices may be cascaded in two different modes: the Add mode and the Multiply mode (see Figures 9 and 11). In the Add mode, Output Rate = (Clock Rate) [0.1BCD1 + 0.01BCD2 + 0.001BCD3 + . . .]

In the Multiply mode, the fraction programmed into the first rate multiplier is multiplied by the fraction programmed into the second one,
e.g.   9 x 4 = 36      or 36 output
        10  10  100
 pulses for every 100 clock input pulses.

The CD4527BMS is supplied in these 16-lead outline packages:
    Braze Seal DIP           H4X
    Frit Seal DIP               H1F
    Ceramic Flatpack        H6W
