Features:

• High-Voltage Types (20-Volt Rating)
• 3-State Outputs
• Standardized, Symmetrical Output Characteristics
• 100% Tested for Quiescent Current at 20V
• 5V, 10V, and 15V Parametric Ratings
• Maximum Input Current of 1µA at 18V Over Full Package Temperature Range; 100nA at 18V and 25oC
• Noise Margin (Full Package-Temperature Range):
- 1V at VDD = 5V
- 2V at VDD = 10V
- 2.5V at VDD = 15V
• Meets all Requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"


Application

• Digital Multiplexing
• Number-sequence Generation
• Signal Gating


Pinout

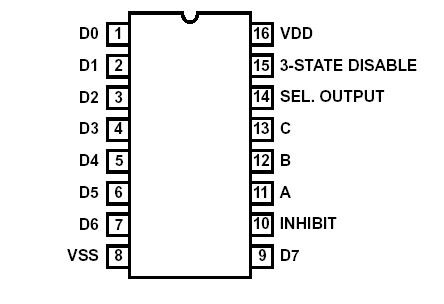

Connection Diagram


Specifications

DC Supply Voltage Range, (VDD) . . . . . . . . . . . . ..................... . . -0.5V to +20V
(Voltage Referenced to VSS Terminals)
Input Voltage Range, All Inputs . . . . . . . . . . ................... . .-0.5V to VDD +0.5V
DC Input Current, Any One Input . . . . . . . ................. . . . . . . . . . . . . . .±10mA
Operating Temperature Range. . . . . . . . . . . . . .................... . . -55 to +125
Package Types D, F, K, H
Storage Temperature Range (TSTG) . . . . . . . . . ..................... . -65 to +150
Lead Temperature (During Soldering) . . . . . . . . . . .................... . . . . . . +265
At Distance 1/16 ± 1/32 Inch (1.59mm ± 0.79mm) from case for 10s Maximum


Description

CD4512BMS is an 8-channel data selector featuring a threestate output that can interface directly with, and drive, data lines of bus-oriented systems.

The CD4512BMS is supplied in these 16 lead outline
packages:
Braze Seal DIP H4S
Frit Seal DIP H1E
Ceramic Flatpack H3X
