CD4511BMS

Features: • High Voltage Type (20V Rating)• High Output Sourcing Capability up to 25mA• Input Latches for BCD Code Storage• Lamp Test and Blanking Capability• 7 Segment Outputs Blanked for BCD Input Codes > 1001• 100% Tested for Quiescent Current at 20V•...

product image

CD4511BMS Picture
See larger image
SeekIC No. : 004311402 Detail

CD4511BMS: Features: • High Voltage Type (20V Rating)• High Output Sourcing Capability up to 25mA• Input Latches for BCD Code Storage• Lamp Test and Blanking Capability• 7 Segment...

CD4511BMS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CD4511BMS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Voltage Type (20V Rating)
• High Output Sourcing Capability up to 25mA
• Input Latches for BCD Code Storage
• Lamp Test and Blanking Capability
• 7 Segment Outputs Blanked for BCD Input Codes > 1001
• 100% Tested for Quiescent Current at 20V
• 5V, 10V and 15V Parametric Ratings
• Maximum Input Current of 1µA at 18V Over Full Package Temperature Range; 100nA at 18V and +25oC


Application

• Driving Common Cathode LED Displays
• Multiplexing with Common Cathode LED Displays
• Driving Incandescent Displays
• Driving Low Voltage Fluorescent Displays


Pinout

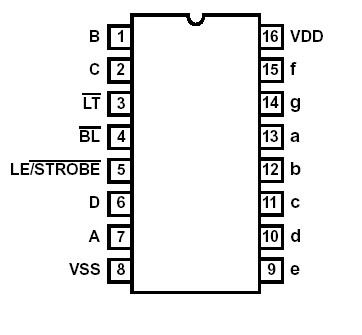

Connection Diagram


Specifications

DC Supply Voltage Range, (VDD) . . . . . . . . . . . . . . ..................... -0.5V to +20V
(Voltage Referenced to VSS Terminals)
Input Voltage Range, All Inputs . . . . . . . . . . . ................... .-0.5V to VDD +0.5V
DC Input Current, Any One Input . . . . . . . . . . . . . ............. . . . . . . . . . .±10mA
Operating Temperature Range. . . . . . . . . . . . . . .................... . -55 to +125
Package Types D, F, K, H
Storage Temperature Range (TSTG) . . . . . . . . . . ..................... -65 to +150
Lead Temperature (During Soldering) . . . . . . . . . . . . . . . . . ...................+265
At Distance 1/16 ± 1/32 Inch (1.59mm ± 0.79mm) from case for 10s Maximum


Description

CD4511BMS is a BCD-to-7-Segment latch decoder drivers constructed with CMOS logic and n-p-n bipolar transistor output devices on a single monolithic structure. These devices combine the low quiescent power dissipation and high noise immunity features of Intersil CMOS with n-p-n bipolar output transistors capable of sourcing up to 25mA. This capability allows the CD4511BMS types to drive LED's and other displays directly.

Lamp Test (LT), Blanking (BL), and Latch Enable or Strobe inputs are provided to test the display, shut off or intensity modulate it, and store or strobe a BCD code, respectively. Several different signals may be multiplexed and displayed when external multiplexing circuitry is used.

CD4511BMS are similar to the type MC14511.

The CD4511BMS is supplied in these 16-lead outline packages: Braze Seal DIP H4W Frit Seal DIP H2R Ceramic Flatpack H6W
