• High Voltage Type (20V Rating)
• 2 TTL Load Output Drive Capability
• 3 State Outputs
• Common Output Disable Control
• Inhibit Control
• 100% Tested for Quiescent Current at 20V
• 5V, 10V and 15V Parametric Ratings
• Maximum Input Current of 1A at 18V Over Full PackageTemperature Range; 100nA at 18V and +25oC
• Noise Margin (Over Full Package/Temperature Range)
1V at VDD = 5V
2V at VDD = 10V
2.5V at VDD = 15V
• Meets All Requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
CD4502BMS consists of six inverter/buffers with 3 state outputs. A logic "1" on the OUTPUT DISABLE input produces a high impedance state in all six outputs. This feature permits common busing of the outputs, thus simplifying system design. A Logic "1" on the INHIBIT input switches all six outputs to logic "0" if the OUTPUT DISABLE input is a logic "0". This device is capable of driving two standard TTL loads, which is equivalent to six times the JEDEC "B" series IOL standard.

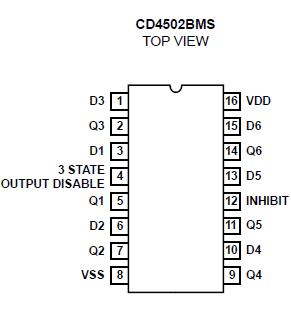

The CD4502BMS is supplied in these 16-lead outline packages:
Braze Seal DIP H4T
Frit Seal DIP H1F
Ceramic Flatpack H6W
