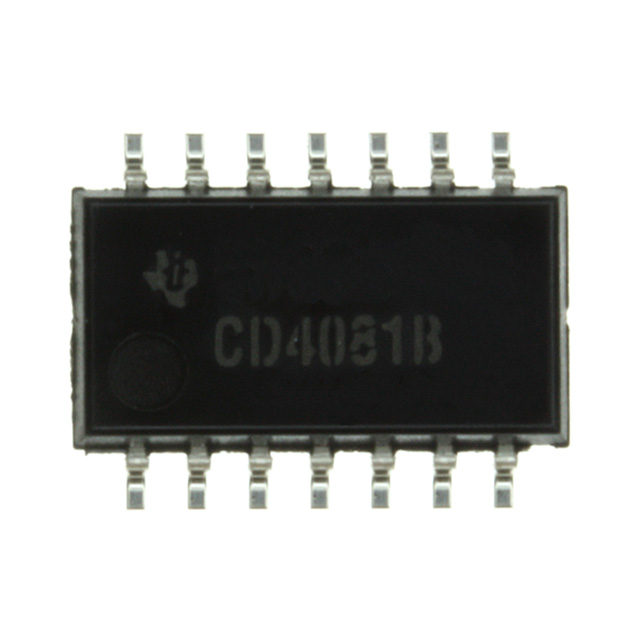

CD4081BNSRG4: Gates (AND / NAND / OR / NOR) CMOS Quad 2-Input AND Gate

CD4081BNSRG4 Data Sheet

US $ .12~.32 / Piece | Get Latest Price

Part Number:: CD4081BNSRG4
Mfg:: Texas Instruments
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$.32
$.23
$.2
$.12

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

CD4000B evaluate
Features: SpecificationsDescriptionThe CD4000B has the following features including DC INPUT CURRE...
CD4000BMS evaluate
Features: • High-Voltage Types (20V Rating)• Propagation Delay Time = 60ns (typ.) at C...
CD4001BC evaluate
Features: ` Low power TTL.... Fan out of 2 driving 74L compatibility.......... or 1 driving 74LS`5...

Product Details

Quick Details

Product :	AND	Logic Family :	4081B
Number of Gates :	Quad	Number of Lines (Input / Output) :	2 / 1
High Level Output Current :	- 4.2 mA	Low Level Output Current :	4.2 mA
Propagation Delay Time :	250 ns	Supply Voltage - Max :	18 V
Supply Voltage - Min :	3 V	Maximum Operating Temperature :	+ 125 C
Mounting Style :	SMD/SMT	Package / Case :	SOP-14
Packaging :	Reel

Description

Product : AND
Maximum Operating Temperature : + 125 C
Mounting Style : SMD/SMT
Packaging : Reel
Number of Lines (Input / Output) : 2 / 1
Number of Gates : Quad
High Level Output Current : - 4.2 mA
Low Level Output Current : 4.2 mA
Propagation Delay Time : 250 ns
Supply Voltage - Max : 18 V
Supply Voltage - Min : 3 V
Package / Case : SOP-14
Logic Family : 4081B

Parameters:

Technical/Catalog Information	CD4081BNSRG4
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Number of Circuits	4 - Quad
Package / Case	14-SOIC (5.3mm Width), 14-SOP, 14-SOIJ
Logic Type	AND Gate
Packaging	Tape & Reel (TR)
Mounting Type	Surface Mount
Number of Inputs	2
Current - Output High, Low	6.8mA, 6.8mA
Supply Voltage	3 V ~ 18 V
Operating Temperature	-55°C ~ 125°C
Voltage - Supply	3 V ~ 18 V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CD4081BNSRG4 CD4081BNSRG4
