CD4076BMS

Features:

High Voltage Type (20V Rating)
Three State Outputs
Input Disabled Without Gating the Clock
Gated Output Control Lines for Enabling or Disabling
the Outputs
Standardized Symmetrical Output Characteristics
100% Tested for Quiescent Current at 20V
Maximum Input Current of 1A at 18V Over Full Pack-o
age Temperature Range; 100nA at 18V and +25 C
Noise Margin (Over Full Package/Temperature Range)
- 1V at VDD = 5V
- 2V at VDD = 10V
- 2.5V at VDD = 15V
5V, 10V and 15V Parametric Ratings
Meets All Requirements of JEDEC Tentative Standard
No. 13B, "Standard Specifications for Description of
'B' Series CMOS Devices"

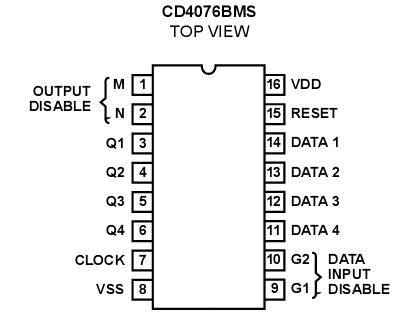

Pinout






Specifications

DC Supply Voltage Range, (VDD) . . . . . . . . . . . . . ........ . -0.5V to +20V
(Voltage Referenced to VSS Terminals)
Input Voltage Range, All Inputs . . . . . . . . . . ....... . .-0.5V to V_DD +0.5V
DC Input Current, Any One Input . . . . . . . . . . . . .. . . . . . . . . . .±10mA
Operating Temperature Range. . . . . . . . . . . . . ....... . . -55 C to +125
Package Types D, F, K, H
Storage Temperature Range (TSTG). . . . . . . . . ......... . -65 C to +150
Lead Temperature (During Soldering) . . . . . . . . ...... . . . . . . . . +265

Description

CD4076BMS types are four-bit registers consisting of D-type flip-flops that feature three-state outputs. Data Disable inputs are provided to control the entry of data into the flip-flops. When both Data Disable inputs are low, data at the D inputs are loaded into their respective flip-flops on the next positive transition of the clock input. Output Disable inputs are also provided. When the Output Disable inputs are both low, the normal logic states of the four outputs are available to the load. The CD4076BMS outputs are disabled independently of the clock by a high logic level at either Output Disable input, and present a high impedance. The CD4076BMS is supplied in these 16 lead outline packages: Braze Seal DIP H4T Frit Seal DIP H1E Ceramic Flatpack H6W
