CD4051B

Features: • Wide Range of Digital and Analog Signal Levels - Digital . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3V to 20V - Analog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20VP-P• Low ON Resistance, 125W (Typ) Over 15VP-P Signal Input Range for VDD-...

product image

CD4051B Picture
See larger image
SeekIC No. : 004311305 Detail

CD4051B: Features: • Wide Range of Digital and Analog Signal Levels - Digital . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3V to 20V - Analog. . . . . . . . . . . . . . . . . . . . . . ....

CD4051B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CD4051B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Wide Range of Digital and Analog Signal Levels
   - Digital . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3V to 20V
   - Analog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20VP-P
• Low ON Resistance, 125W (Typ) Over 15VP-P Signal Input Range for VDD-VEE = 18V
• High OFF Resistance, Channel Leakage of ±100pA (Typ) at VDD-VEE = 18V
• Logic-Level Conversion for Digital Addressing Signals of 3V to 20V (VDD-VSS = 3V to 20V) to Switch Analog Signals to 20VP-P (VDD-VEE = 20V)
• Matched Switch Characteristics, rON = 5W (Typ) for VDD-VEE = 15V
• Very Low Quiescent Power Dissipation Under All Digital- Control Input and Supply Conditions, 0.2mW (Typ) at VDD-VSS = VDD-VEE = 10V
• Binary Address Decoding on Chip
• 5V, 10V and 15V Parametric Ratings
• 10% Tested for Quiescent Current at 20V
• Maximum Input Current of 1A at 18V Over Full Package Temperature Range, 100nA at 18V and 25oC
• Break-Before-Make Switching Eliminates Channel Overlap


Application

• Analog and Digital Multiplexing and Demultiplexing
• A/D and D/A Conversion
• Signal Gating


Pinout

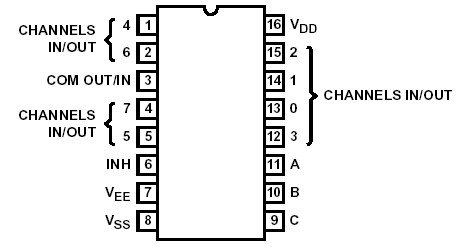

Connection Diagram


Specifications

Supply Voltage (V+ to V-)
   Voltages Referenced to VSS Terminal . . . . . . . . . . -0.5V to 20V
DC Input Voltage Range . . . . . . . . . . . . . . . . -0.5V to VDD +0.5V
DC Input Current, Any One Input. . . . . . . . . . . . . . . . . . . ±10mA
