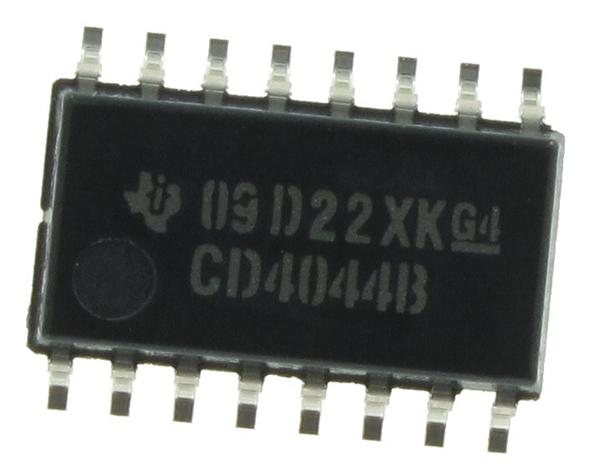

CD4044BNSR

Maximum Operating Temperature : + 125 C
Packaging : Reel
Polarity : Non-Inverting
Low Level Output Current : 32 mA
Number of Circuits : 1
Minimum Operating Temperature : - 55 C
Number of Output Lines : 4
High Level Output Current : - 4.2 mA
Supply Voltage - Max : 18 V
Supply Voltage - Min : 3 V
Propagation Delay Time : 300 ns at 5 V, 140 ns at 10 V, 100 ns at 15 V
Logic Family : CD4000
Logic Type : Converters
Package / Case : SOP-16


Parameters:

Technical/Catalog Information	CD4044BNSR
Vendor	Texas Instruments (VA)
Category	Integrated Circuits (ICs)
Logic Type	S-R Latch
Independent Circuits	4
Circuit	1:1
Output Type	Tri-State
Current - Output High, Low	6.8mA, 6.8mA
Mounting Type	Surface Mount
Package / Case	16-SOIC (5.3mm Width), 16-SO, 16-SOEIIJ
Packaging	Digi-Reel?
Operating Temperature	-55°C ~ 125°C
Delay Time - Propagation	50ns
Voltage - Supply	3 V ~ 18 V
Drawing Number	296; 4040062; NS; 14, 16, 20, 24
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CD4044BNSR CD4044BNSR 296 12762 6 ND 296127626ND 296-12762-6
