• High Voltage Type (20V Rating)
• Fully Static Operation: DC to 12MHz (typ.) at VDD - VSS = 15V
• Standard TTL Drive Capability on Q Output
• Recirculation Capability
• Three Cascading Modes:
Direct Clocking for High-Speed Operation
Delayed Clocking for Reduced Clock Drive Requirements
Additional 1/2 Stage for Slow Clocks
• 100% Tested For Quiescent Current at 20V
• Maximum Input Current of 1A at 18V Over Full Package-Temperature Range;
100nA at 18V and +25oC
• Noise Margin (Over Full Package Temperature Range):
1V at VDD = 5V
2V at VDD = 10V
2.5V at VDD = 15V
• 5V, 10V and 15V Parametric Ratings
• Meets All Requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
The CD4031BMS is a static shift register that contains 64 Dtype, master-slave flip-flop stages and one stage which is a D-type master flip-flop only (referred to as a 1/2 stage).
The logic level present at the DATA input is transferred into the first stage and shifted one stage at each positive-going clock transition. CD4031BMS Maximum clock frequencies up to 12MHz (typical) can be obtained. Because fully static operation is allowed, information can be permanently stored with the clock line in either the low or high state. The CD4031BMS has a MODE CONTROL input that, when in the high state, allows operation in the recirculating mode. The CD4031BMS MODE CONTROL input can also be used to select between two separate data sources. CD4031BMS Register packages can be cascaded and the clock lines driven directly for high-speed operation. Alternatively, a delayed clock output (CLD) is provided that enables cascading register packages while allowing reduced clock drive fan-out and transition-time requirements. A third cascading option makes use of the Q' output from the 1/2 stage, which is available on the next negative-going transition of the clock after the Q output occurs. This delayed output, like the delayed clock CLD, is used with clocks having slow rise and fall times.

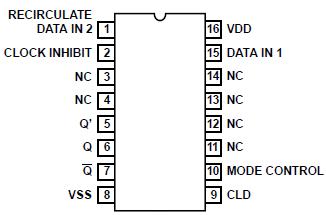

The CD4031BMS is supplied in these 16 lead outline packages:
Braze Seal DIP H4X
Frit Seal DIP H1F
Ceramic Flatpack H6W
