Product Details

Description



Features:

·  Wide supply voltage range: 3.0V to 15V
·  Low power: 100 nW (typ.)
·  Medium speed operation:
    tPHL = tPLH = 40 ns (typ.) at CL = 15 pF, 10V supply
·  High noise immunity 0.45 VCC (typ.)


Application

• Automotive
• Data terminals
• Instrumentation
• Medical electronics
• Industrial controls
• Remote metering
• Computer


Pinout

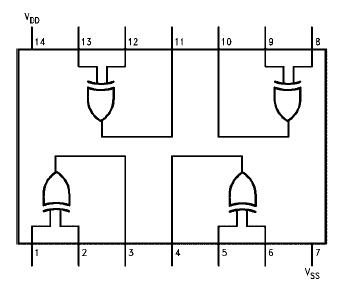

Connection Diagram


Specifications

Voltage at Any Pin (Note 2) ...........VSS −0.3V to VSS +15.5V
Operating Temperature Range................. −55°C to +125°C
Storage Temperature Range ....................−65°C to +150°C
Power Dissipation (PD)
Dual-In-Line ............................................................700 mW
Small Outline ...........................................................500 mW
Operating VDD Range .......................VSS +3.0V to VSS +15V
Lead Temperature
(Soldering, 10 seconds) ...............................................260°C


Description

The CD4030C EXCLUSIVE-OR gates are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors. All inputs are protected against static discharge with diodes to VDD and VSS.
