SeekIC No. : 00328981 Detail

CD4024BCM: Counter ICs 7-Stage Binary Ctr

CD4024BCM Data Sheet

Get Latest Price

Part Number:: CD4024BCM
Mfg:: Fairchild Semiconductor
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

CD4000B evaluate
Features: SpecificationsDescriptionThe CD4000B has the following features including DC INPUT CURRE...
CD4000BMS evaluate
Features: • High-Voltage Types (20V Rating)• Propagation Delay Time = 60ns (typ.) at C...
CD4001BC evaluate
Features: ` Low power TTL.... Fan out of 2 driving 74L compatibility.......... or 1 driving 74LS`5...

Product Details

Quick Details

Counter Type :

Binary Counters

Description

Logic Family :
Number of Bits :
Counting Method :
Counting Sequence :
Operating Supply Voltage :
Operating Temperature Range :
Package / Case :
Packaging :
Counter Type : Binary Counters

Features:

· Wide supply voltage range: 3.0V to 15V
· High noise immunity: 0.45 VDD (typ.)
· Low power TTL compatibility: Fan out of 2 driving 74L
or 1 driving 74LS
· High speed: 12 MHz (typ.)
input pulse rate VDD − VSS = 10V
· Fully static operation

Pinout

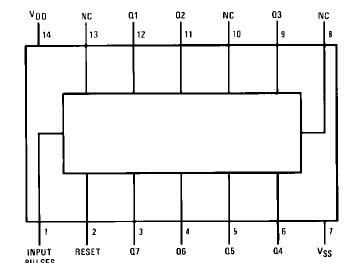

Connection Diagram

Specifications

DC Supply Voltage (V_DD) ...............−0.5 VDC to +18 V_DC
Input Voltage (V_IN) ...............−0.5 VDC to V_DD +0.5 V_DC
Storage Temperature (TS) ..................−65°C to +150°C
Power Dissipation (P_D)
Dual-In-Line ......................................................700 mW
Small Outline .....................................................500 mW
Lead Temperature (T_L)
(Soldering, 10 seconds) ........................................260°C

Description

The CD4024BC is a 7-stage ripple-carry binary counter. Buffered outputs are externally available from stages 1 through 7. The counter is reset to its logical "0" stage by a logical "1" on the reset input. The counter is advanced one count on the negative transition of each clock pulse
