CD4021BCN

Counter Type :
Output Type :
Number of Circuits : 1
Maximum Operating Temperature : + 125 C
Minimum Operating Temperature : - 55 C
Logic Type : CMOS
Packaging : Tube
Package / Case : PDIP-16
Counting Sequence : Serial/Parallel to Parallel
Logic Family : CD402
Number of Input Lines : 1 / 2
Propagation Delay Time : 350 ns, 175 ns, 140 ns


Features:

` Wide supply voltage range: 3.0V to 15V
` High noise immunity: 0.45 VDD (typ.)
` Low power TTL compatibility:
   Fan out of 2 driving 74L or 1 driving 74LS
` 5V10V15V parametric ratings
` Symmetrical output characteristics
` Maximum input leakage 1 A at 15V over full temperature range

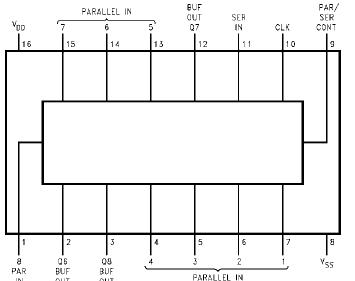

Pinout




Specifications

Supply Voltage (V_DD) ..........................−0.5V to +18V
Input Voltage (V_IN) .....................−0.5V to V_DD +0.5V
Storage Temperature Range (TS) ...−65°C to +150°C
Power Dissipation (PD)
Dual-In-Line ..................................................700 mW
Small Outline .................................................500 mW
Lead Temperature (T_L)
(Soldering, 10 seconds) ...................................260°C


Description

The CD4021BC is an 8-stage parallel input/serial output shift register. A parallel/serial control input enables individual JAM inputs to each of 8 stages. Q outputs are available from the sixth, seventh, and eighth stages. All outputs have equal source and sink current capabilities and conform to standard "B" series output drive.

When the parallel/serial control input is in the logical "0" state, data is serially shifted into the register synchronously with the positive transition of the clock. When the parallel/ serial control is in the logical "1" state, data is jammed into each stage of the register asynchronously with the clock. All CD4021BC inputs are protected against static discharge with diodes to VDD and VSS.

Parameters:

Technical/Catalog Information	CD4021BCN
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Logic Type	Shift Register
Function	Parallel or Serial to Serial
Number of Elements	1 - Single
Number of Bits per Element	8
Output Type	Standard
Voltage - Supply	3 V ~ 18 V
Mounting Type	Through Hole
Package / Case	16-DIP
Packaging	Tube
Operating Temperature	-55°C ~ 125°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CD4021BCN CD4021BCN
