CD4017BCSJ

Counter ICs Decode Ctr/Divider

product image

CD4017BCSJ Picture
See larger image
SeekIC No. : 00328901 Detail

CD4017BCSJ: Counter ICs Decode Ctr/Divider

CD4017BCSJ Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CD4017BCSJ
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Counter Type : Decade Counters

Description

Logic Family :
Number of Bits :
Counting Method :
Counting Sequence :
Operating Supply Voltage :
Operating Temperature Range :
Package / Case :
Packaging :
Counter Type : Decade Counters


Features:

` Wide supply voltage range: 3.0V to 15V
` High noise immunity: 0.45 VDD (typ.)
` Low power Fan out of 2 driving 74L
  TTL compatibility: or 1 driving 74LS
` Medium speed operation: 5.0 MHz (typ.)
  with 10V VDD
` Low power: 10 W (typ.)
` Fully static operation


Pinout

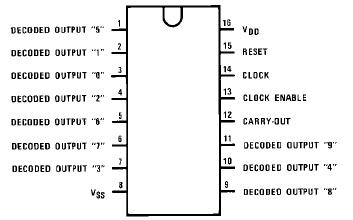

Connection Diagram


Specifications

DC Supply Voltage (VDD) ...............−0.5 VDC to +18 VDC
Input Voltage (VIN) ...............−0.5 VDC to VDD +0.5 VDC
Storage Temperature (TS) ..................−65°C to +150°C
Power Dissipation (PD)
Dual-In-Line ......................................................700 mW
Small Outline .....................................................500 mW
Lead Temperature (TL)
(Soldering, 10 seconds) ........................................260°C


Description

The CD4017BC is a 5-stage divide-by-10 Johnson counter with 10 decoded outputs and a carry out bit.

The CD4022BC is a 4-stage divide-by-8 Johnson counter with 8 decoded outputs and a carry-out bit.

These CD4017BC counters are cleared to their zero count by a logical "1" on their reset line. These counters are advanced on the positive edge of the clock signal when the clock enable signal is in the logical "0" state.

The configuration of the CD4017BC and CD4022BC permits medium speed operation and assures a hazard free counting sequence. The 10/8 decoded outputs are normally in the logical "0" state and go to the logical "1" state only at their respective time slot. Each decoded output remains high for 1 full clock cycle. The carry-out signal completes a full cycle for every 10/8 clock input cycles and is used as a ripple carry signal to any succeeding stages.
