CD40107BMS

Features:

• High Voltage Type (20V Rating)
• 32 Times Standard B Series Output Current Drive Sinking Capability
  - 136mA Typ. at VDD = 10V
  - VDS = 1V
• 100% Tested for Quiescent Current at 20V
• 5V, 10V and 15V Parametric Ratings
• Maximum Input Current of 1A at 18V Over Full Package Temperature Range; 100nA at 18V and +25
• Noise Margin (Over Full Package/Temperature Range) RL to VDD = 10k
  - 1V at VDD = 5V
  - 2V at VDD = 10V
  - 2.5V at VDD = 15V
• Meets All Requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"


Application

• Driving Relays, Lamps, LEDs
• Line Driver
• Level Shifter (Up or Down)

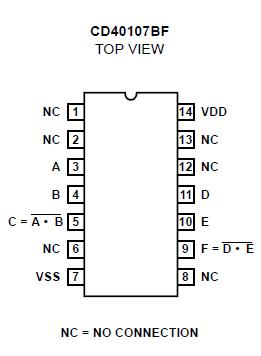

Pinout




Specifications

DC Supply Voltage Range, (VDD) . . . . . . . . . . .. . . . .  . . . . .  . . . . -0.5V to +20V
(Voltage Referenced to VSS Terminals)
Input Voltage Range, All Inputs . . . . . . . . . . . . . . . . . . .. . . .-0.5V to VDD +0.5V
DC Input Current, Any One Input . . . . . . . .. . . . . .  . . . . . . . . . . . . . . . .±10mA
Operating Temperature Range. . . . . . . . . . . .. . . . . . . . . . . . . . -55 to +125
Package Types D, F, K, H
Storage Temperature Range (TSTG) . . . . . .. . . . . . . . . .  . . . . . -65 to +150
Lead Temperature (During Soldering) . . . . . . . . . . . . . . . . .. . . . . . . . . . +265
At Distance 1/16 ± 1/32 Inch (1.59mm ± 0.79mm) from case for 10s Maximum


Description

CD40107BMS is a dual 2 input NAND buffer/driver containing two independent 2 input NAND buffers with open drain single n-channel transistor outputs. This device features a wired OR capability and high output sink current capability (136mA typ. at VDD = 10V, VDS = 1V).

The CD40107BMS is supplied in these 14 lead outline packages:

Braze Seal DIP..  H4H
Frit Seal DIP ....H1B
Ceramic Flatpack. H3W
