CD4009UBMS

Features:

• Inverting Type
• High-Voltage Type (20V Rating)
• 100% Tested for Quiescent Current at 20V
• Maximum Input Current of 1A at 18V Over Full Package-Temperature Range;
   - 10nA at 18V and +25
• 5V, 10V and 15V Parametric Ratings


Application

• CMOS To DTL/TTL Hex Converter
• CMOS Current "Sink" or "Source" Driver
• CMOS High-to-Low Logic-Level Converter
• Multiplexer - 1 to 6 or 6 to 1

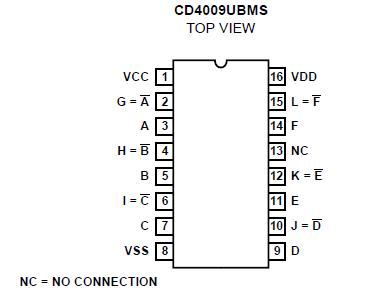

Pinout




Specifications

DC Supply Voltage Range, (VDD) . . . . . . . . . . . .. . . . . . . .  . . . .-0.5V to +20V
(Voltage Referenced to VSS Terminals)
Input Voltage Range, All Inputs . . . . . . . . . . . . . . . . ..  . . -0.5V to VDD +0.5V
DC Input Current, Any One Input. . . . . . . . . .. . . . .  . . . . . . . . . . . . . .±10mA
Operating Temperature Range . . . . . . . . . .. . . . . . . . . . . .  . -55oC to +125
Package Types D, F, K, H
Storage Temperature Range (TSTG). . . . . . . . . . . . . . . . .. . . -65  to +150
Lead Temperature (During Soldering) . . . . . . . . . . . . . . . . . . . . . .. . . . +265
At Distance 1/16 ± 1/32 Inch (1.59mm ± 0.79mm) from case for 10s Maximum


Description

CD4009UBMS Hex Buffer/Converter may be used as a CMOS to TTL or DTL logic-level converter or a CMOS highsink-current driver.

The CD4049UB is the preferred hex buffer replacement for the CD4009UBMS in all applications except multiplexers. For applications not requiring high sink current or voltage conversion, the CD4069UB Hex Inverter is recommended.

The CD4009UBMS is supplied in these 16 lead outline packages:

Braze Seal DIP...H4S
Frit Seal DIP ....H1E
Ceramic Flatpack ..H3X
