CD1366CP

Features: `High input sensitivity; TYP. 30dB.`It can be used both of keyed type AGC and peak type AGC.`It can be operated with the power supply voltage above 7V.`Since the video detector has wide bandwidth, it's suitable for the sound carrier frequency of 4.5, 5.5, 6.0, 6.5 MHz.`As input is differ...

product image

CD1366CP Picture
See larger image
SeekIC No. : 004311040 Detail

CD1366CP: Features: `High input sensitivity; TYP. 30dB.`It can be used both of keyed type AGC and peak type AGC.`It can be operated with the power supply voltage above 7V.`Since the video detector has wide ba...

CD1366CP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CD1366CP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`High input sensitivity; TYP. 30dB.
`It can be used both of keyed type AGC and peak type AGC.
`It can be operated with the power supply voltage above 7V.
`Since the video detector has wide bandwidth, it's suitable for the sound carrier frequency of 4.5, 5.5, 6.0, 6.5 MHz.
`As input is differential mode, it can be used with SAW filter.
`All functions for VIF stage are provided by this single chip IC and this IC will realize reduction of assembly cost as well as reduction of  number of external components.


Pinout

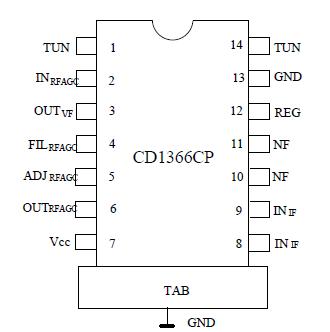

Connection Diagram


Specifications

Characteristics Symbol Value Unit
Supply Voltage Pin 7 V7 15 V
Input Signal Voltage V8 V9 3 Vpp
Power Dissipation Pd 875(Ta=75) Free Air mW
Operating Temperature Topt -20~75
Storage Temperature Tstg -40~125



Description

The CD1366CP is a silicon monolithic integrated circuit designed for VIF section in B/W television receivers. CD1366CP IC has functions including video IF amplifier, video low-level detector, RF AGC, IF AGC and noise chancellor.
This IC is encapsulated in 14 pin dual in-line package with heat tab.
