Features: • High performance and low power 8051 microcontroller core.
• 2.4 GHz IEEE 802.15.4 compliant RF transceiver (industry leading CC2420 radio core).
• Excellent receiver sensitivity and robustness to interferers
• 32, 64 or 128 KB in-system programmable flash
• 8 KB RAM, 4 KB with data retention in all power modes
• Powerful DMA functionality
• Very few external components
• Only a single crystal needed for mesh network systems
• Low current consumption (RX: 27mA, TX:25mA, microcontroller running at 32 MHz)
• Only 0.9A current consumption in power-down mode, where external interrupts or the RTC can wake up the system
• Less than 0.6A current consumption in standby mode, where external interrupts can wake up the system
• Very fast transition times from low-power modes to active mode enables ultra low average power consumption in low duty-cycle systems
• CSMA/CA hardware support.
• Wide supply voltage range (2.0V 3.6V)
• Digital RSSI / LQI support
• Battery monitor and temperature sensor.
• 8-14 bits ADC with up to eight inputs
• AES security coprocessor
• Two powerful USARTs with support for several serial protocols.
• Watchdog timer
• One IEEE 802.15.4 MAC Timer, one general 16-bit timer and two 8-bit timers
• Hardware debug support
• 21 general I/O pins, two with 20mA sink/source capability
• Powerful and flexible development tools available
• RoHS compliant 7x7mm QLP48 package
Application• 2.4 GHz IEEE 802.15.4 systems
• ZigBee™ systems
• Home/building automation
• Industrial Control and Monitoring
• Low power wireless sensor networks
• PC peripherals
• Set-top boxes and remote controls

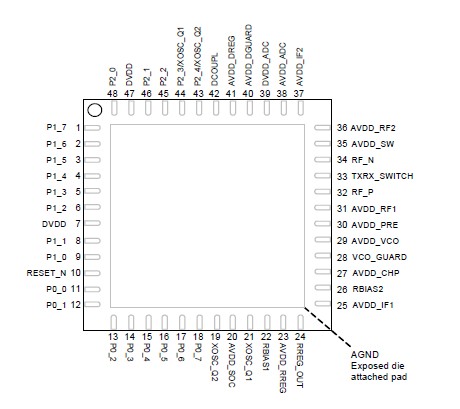

• Consumer ElectronicsPinout
SpecificationsUnder no circumstances must the absolute maximum ratings given in Table 2 be violated. Stress
exceeding one or more of the limiting values may cause permanent damage to the device.
| Parameter |
Min |
Max |
Units |
Condition |
| Supply voltage |
0.3 |
3.6 |
V |
All supply pins must have the same voltage |
| Voltage on any digital pin |
0.3 |
VDD+0.3,
max 3.6 |
V |
|
Voltage on the 1.8V pins (pin no.
22, 25-40 and 42) |
0.3 |
2.0 |
V |
|
| Input RF level |
|
10 |
dBm |
|
| Storage temperature range |
50 |
150 |
|
Device not programmed |
| Reflow soldering temperature |
|
260 |
|
Device not programmed |
DescriptionThe CC2430 comes in three different versions:CC2430-F32/64/128, with 32/64/128 KB of flash memory respectively. The CC2430 is a true System-on-Chip (SoC) solution specifically tailored for IEEE 802.15.4 and ZigBee™ applications. It enables ZigBee™ nodes to be built with very low total bill-ofmaterial costs. The CC2430 combines the excellent performance of the leading CC2420 RF transceiver with an industry-standard enhanced 8051 MCU, 32/64/128 KB flash memory, 8 KB RAM and many other powerful features. Combined with the industry leading ZigBee™ protocol stack (Z-Stack) from Figure 8 Wireless / Chipcon, the CC2430 provides the market's most competitive ZigBee™ solution.
The CC2430 is highly suited for systems where ultra low power consumption is required. This is ensured by various operating modes. Short transition times between operating modes further ensure low power consumption.
CC2430 Data Sheet
