CBT6832

Features:

• 5 typical ron
• Pull-up on B ports
• Undershoot protection on A port only: 1.5 V
• Near zero propagation delay
• Controlled enable rate
• V_CC operating range: +4.5 V to +5.5 V
• > 100 MHz bandwidth (or clock rate) at 20 pF load capacitance
• 56-pin TSSOP package
• Bias voltage pre-charges the B output when the channel is disabled
• Latch-up protection exceeds 100 mA per JESD78
• ESD protection exceeds 2000 V HBM per JESD22-A114, 200 V MM per JESD22-A115 and 1000 V CDM per JESD22-C101


Application

Applications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors make no representation or warranty that such applications will be suitable for the specified use without further testing or modification.

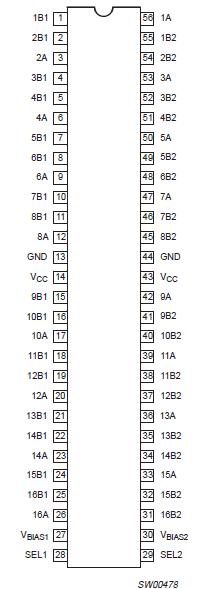

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	RATING	UNIT
VCC	DC supply voltage		0.5 to +7.0	V
IIK	DC input diode current	VI < 0	50	mA
VI	DC input voltage3		0.5 to +7.0	V
VOUT	DC output voltage3	output in Off or High state	0.5 to +7.0	V
IOUT	DC output current	output in Low state	120	mA
Tstg	Storage temperature range		65 to +150
	Power dissipation		95	/W

Description

The CBT6832 is a 16-bit 1-of-2 multiplexer/demultiplexer with precharged outputs and Schottky protection for live insertion.
Advantages of the CBT6832 include a propagation delay of 250 ps, resulting from 5 W channel resistance, and low I/O capacitance. A port demultiplexes to either 1B and 2B, or to both. The switch is bi-directional.
