CBT16292

Features:

• 6 switch connection between two ports
• TTL compatible control input levels
• Break-before-make feature
• Internal 500 W pulldown resistors to ground
• Latch-up protection exceeds 500 mA per JESD78
• ESD protection exceeds 2000 V HBM per JESD22-A114, 200 V MM per JESD22-A115 and 1000 V CDM per JESD22-C101

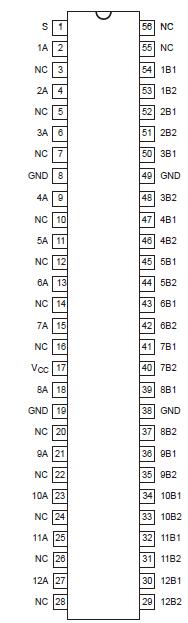

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	RATING	UNIT
VCC	DC supply voltage		0.5 to +7.0	V
IIK	DC input diode current	V1< 0	50	mA
VI	DC input voltage3		0.5 to +7.0	V
ISW	DC clamp diode current	VO = 0 V to VCC	±128	mA
Tstg	Storage temperature range		65 to 150
BiasV	DC voltage range		97	/W

Description

The CBT16292 is a 12-bit 1-of-2 high-speed TTL-compatible multiplexer/demultiplexer. The low on-state resistance of the switch of the switch allows connections to be made with minimal propagation delay.

When the CBT16292 select (S) input is low, port A is connected to port B1 and R_INT is connected to port B2. When S is high, port A is connected to port B2 and R_INT is connected to port B1.

The CBT162292 is characterized for operation from 40 to +85.
