CBT16213

Features:

• 5 switch connection between two ports
• TTL compatible control input levels
• Package options include plastic shrink small outline (SSOP) and thin shrink small outline (TSSOP)

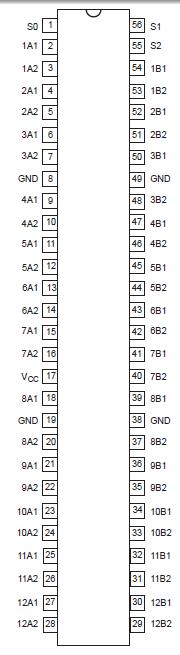

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	RATING	UNIT
VCC	DC supply voltage		0.5 to +7.0	V
IIK	DC input diode current	V1< 0	50	mA
VI	DC input voltage3		0.5 to +7.0	V
VOUT	DC output voltage3	output in Off or High state	0.5 to +5.5	V
IOUT	DC output current	output in Low state	128	mA
Tstg	Storage temperature range		65 to +150

Description

The CBT16213 provides 24 bits of high-speed TTL-compatible bus switching or exchanging. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.

The CBT16213 operates as 24-bit bus switch or a 12-bit bus exchanger, which provides data exchanging between the four signal ports via the data-select (S0S2) terminals.

The CBT16213 is characterized for operation from 40 to +85 .
