Features: `Precision monitoring of+5.0 V (+/- 5%, +/- 10%, +/- 20%),+3.3 V (+/- 5%, +/ 10%),+3.0 V (+/- 10%) and+2.5 V (+/- 5%) power supplies`Offered in two output configurations:- CAT811: Active LOW reset- CAT812: Active HIGH reset`Manual reset input`Direct replacements for the MAX811 andMAX812 ...

product image

CAT811 Picture
See larger image
SeekIC No. : 004310769 Detail

CAT811: Features: `Precision monitoring of+5.0 V (+/- 5%, +/- 10%, +/- 20%),+3.3 V (+/- 5%, +/ 10%),+3.0 V (+/- 10%) and+2.5 V (+/- 5%) power supplies`Offered in two output configurations:- CAT811: Active L...

CAT811 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CAT811
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Precision monitoring of
+5.0 V (+/- 5%, +/- 10%, +/- 20%),
+3.3 V (+/- 5%, +/ 10%),
+3.0 V (+/- 10%) and
+2.5 V (+/- 5%) power supplies
`Offered in two output configurations:
- CAT811: Active LOW reset
- CAT812: Active HIGH reset
`Manual reset input
`Direct replacements for the MAX811 and
MAX812 in applications operating over the industrial temperature range
`Reset valid down to VCC = 1.0 V
`6 A power supply current
`Power supply transient immunity
`Compact 4-pin SOT143 package
`Industrial temperature range: -40˚C to +85˚C




Application

·Computers
·Servers
·Laptops
·Cable modems
·Wireless communications
·Embedded control systems
·White goods
·Power meters
·Intelligent instruments
·PDAs and handheld equipment




Pinout

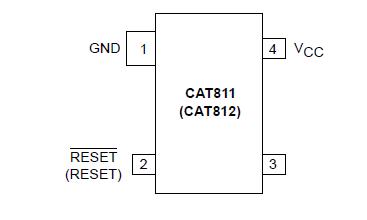

Connection Diagram




Specifications

Any pin with respect to ground ........ -0.3 V to +6.0 V
Input Current, VCC .................................. ....... 20 mA
Output Current, RESET, RESET ........................ 20 mA
Rate of Rise, VCC ......................................... 100 V/s
Continuous Power Dissipation
Derate 4mW/ above 70 (SOT143) .......... 320 mW
Operating Temperature Range ........... -40 to +85
Storage Temperature Range ............ -65 to +105
Lead Soldering Temperature (10 sec) .............. 300





Description

The CAT811 and CAT812 are P supervisory circuits that monitor power supplies in digital systems. The CAT811 and CAT812 are direct replacements for the MAX811 and MAX812 in applications operating over the industrial temperature range; both have a manual reset input.

CAT811 generate a reset signal, which is asserted while the power supply voltage is below a preset threshold level and for at least 140 ms after the power supply level has risen above that level. The underlying floating gate technology, AE2(TM) used by Catalyst Semiconductor, makes it possible to offer any custom reset threshold value. Seven industry standard threshold levels areoffered to support +5.0 V, +3.3 V, +3.0 V and +2.5 V systems.

The CAT811 features a RESET push-pull output (active LOW) and the CAT812 features a RESET push-pull output (active HIGH).

Fast transients on the power supply are ignored and the output is guaranteed to be in the correct state at Vcc levels as low as 1.0 V.

The CAT811/812 are fully specified over the industrial temperature range (-40 to 85) and are available in a compact 4-pin SOT143 package.
