CAT64LC20

Features: *SPI bus compatible*Low power CMOS technology*2.5V to 6.0V operation*Self-timed write cycle with auto-clear*Hardware reset pin*Hardware and software write protection*Commercial, industrial and automotivetemperature ranges*Power-up inadvertant write protection*RDY/BSY pin for end-of-write...

product image

CAT64LC20 Picture
See larger image
SeekIC No. : 004310751 Detail

CAT64LC20: Features: *SPI bus compatible*Low power CMOS technology*2.5V to 6.0V operation*Self-timed write cycle with auto-clear*Hardware reset pin*Hardware and software write protection*Commercial, industrial...

CAT64LC20 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CAT64LC20
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 *SPI bus compatible
 *Low power CMOS technology
 *2.5V to 6.0V operation
 * Self-timed write cycle with auto-clear
 * Hardware reset pin
 * Hardware and software write protection
 *Commercial, industrial and automotivetemperature ranges
 * Power-up inadvertant write protection
 * RDY/BSY pin for end-of-write indication
 *1,000,000 program/erase cycles
 * 100 year data retention

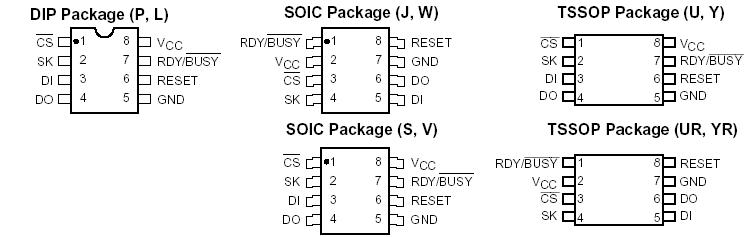

Pinout

Connection Diagram


Specifications

Temperature Under Bias .............55°C to +125°C
Storage Temperature.................. 65°C to +150°C
Voltage on any Pin with
Respect to Ground(1) ............ ...2.0V to +VCC +2.0V
VCC with Respect to Ground ............. 2.0V to +7.0V
Package Power Dissipation
Capability (Ta = 25°C)........................................1.0W
Lead Soldering Temperature (10 secs)............ 300°C
Output Short Circuit Current(2) ........................100 mA


Description

The CAT64LC10/20/40 is a 1K/2K/4K-bit Serial EEPROM which is configured as 64/128/256 registers by 16 bits.Each register can be written (or read) serially by using the DI (or DO) pin. The CAT64LC10/20/40 is manufactured using Catalyst's advanced CMOS EEPROM floating gate technology. It is designed to endure 1,000,000 program/erase cycles and has a dataretention of 100 years. The device is available in 8-pin DIP, SOIC and TSSOP packages.
