Product Details

Description



Features:

* Low quiescent ground current (0.5mA typical)
* Power efficiency over 80%
* Compatible pinout with LT1932
* Adjustable output current (up to 40mA)
* High frequency 1.2MHz operation
* Input voltage operation down to 2.0V
* Low resistance (0.5) high voltage power switch
* Drives up to 4 White LEDs in series
* Shutdown current less than 1A
* Load fault protection against open-circuits
* Low value external components
* Low profile (1mm) 6-lead SOT23 and TDFN (0.8mm) package



Application

* Color LCD and keypad backlighting
* Cellular phones
* Handheld terminals
* Digital cameras
* PDAs/Games
* Portable MP3 players

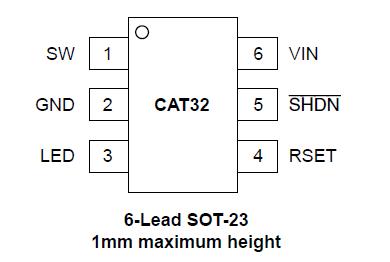

Pinout

  Connection Diagram


Specifications

VIN , LED, SHDN Voltage ......................................... 8V
SW Voltage ........................................................... 20V
RSET Voltage .......................................................... 1V
Junction Temperature ...................................... 125°C
Lead Soldering Temperature (10 secs) ............ 300°C
Storage Temperature .......................-65°C. to 150°C
ESD Rating - Human Body Model ....................... 2000V



Description

The CAT32 is a DC/DC step up converter that delivers a regulated output current. Operation at a constant switching frequency of 1.2MHz allows the device to be used with very small value external inductor and ceramic capacitors.

The CAT32 is targeted to drive multiple white lightemitting diodes (LEDs) connected in series and provides the necessary regulated current to control the brightness and the color purity. An external resistor RSET controls the output current level. LED currents of up to 40mA can be supported over a wide range of input supply voltages from 2V to 7V, making the device ideal for battery-powered applications.

A high voltage output stage allows up to 4 White LEDs o be driven in series. CAT32 Series drive provides inherent current matching.

CAT32 LED dimming can be done by using a DC voltage, a logic signal, or a pulse width modulation (PWM) signal. The shutdown input pin allows the device to be placed in power-down mode with "near zero" quiescent current. In addition to overcurrent limiting protection, CAT32 also includes detection circuitry to ensure protection against open-circuit load fault conditions.

CAT32 is available in a low profile (1mm max height) 6-lead thin SOT23 package and in a TDFN (0.8mm max height) package.
