Features:

Switching Initiated by Damping of Internal Oscillator
Proximity Sensing of Rotational Motion
• Repeatable Timing of Switching States
Five Outputs - Two Complementary Pairs and One Non-Inverting Outut CA3165E1
Two Outputs - One Complemeentary Pair CA3165E

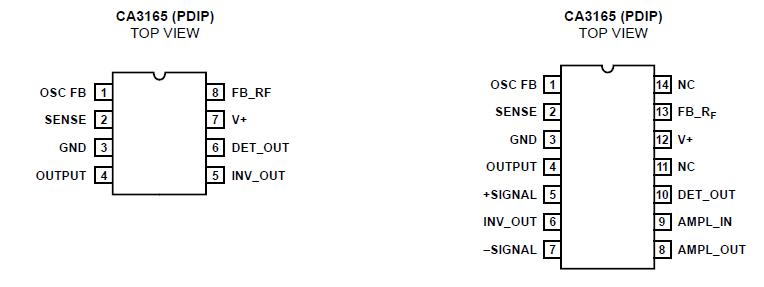

Pinout

  Connection Diagram


Specifications

DC Voltage (With Reference to Terminal 3)
CA3165E1
Terminals 4, 6, 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24V
Terminals 5, 7, 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18V
Terminal 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5V
CA3165E
Terminals 4, 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24V
Terminal 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18V
Current (At Terminals Indicated)
CA3165E1
Terminals 4, 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120mA
Terminals 5, 7 . . . . . . . . . . . . . . . . . . . . . . . . . -0.1mA to 0.1mA
Terminal 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30mA
CA3165E
Terminals 4, 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120mA



Description

The CA3165 is a single chip electronic switching circuit intended primarily for ignition applications. It includes an oscillator that is amplitude-modulated by the rotor teeth of a distributor, a detector that develops the positive going modulation envelope, a Schmitt trigger that eliminates switching uncertainties. Both types include two complementary high current switched outputs for driving power transistors requiring up to 120mA. The CA3165E also includes two complementary low current outputs that incorporate internal current limiting and a non-inverting output amplifier with uncommitted input capable of switching 27mA.
The CA3165 is supplied in the 8 lead dual-in-line plastic package (E suffix) and in the 14 lead dual-in-line plastic package (E1 suffix).
