CA3161

Features: • TTL Compatible Input Logic Levels• 25mA (Typ) Constant Current Segment Outputs• Eliminates Need for Output Current Limiting Resistors• Pin Compatible with Other Industry Standard Decoders• Low Standby Power Dissipation . . . . . . . . 18mW (Typ)PinoutSpeci...

product image

CA3161 Picture
See larger image
SeekIC No. : 004310283 Detail

CA3161: Features: • TTL Compatible Input Logic Levels• 25mA (Typ) Constant Current Segment Outputs• Eliminates Need for Output Current Limiting Resistors• Pin Compatible with Other I...

CA3161 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CA3161
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• TTL Compatible Input Logic Levels
• 25mA (Typ) Constant Current Segment Outputs
• Eliminates Need for Output Current Limiting Resistors
• Pin Compatible with Other Industry Standard Decoders
• Low Standby Power Dissipation . . . . . . . . 18mW (Typ)


Pinout

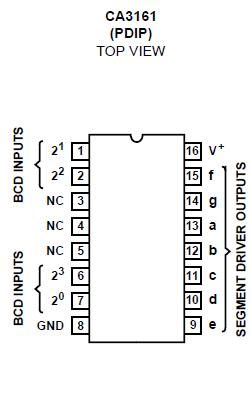

Connection Diagram


Specifications

DC VSUPPLY (Between Terminals 1 and 10) . . . . . . . . . . . . . .+7.0V
Input Voltage (Terminals 1, 2, 6, 7). . . . . . . . . . . . . . . . . . . . . .+5.5V
Output Voltage
Output "Off". . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +7V
Output "On" (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +10V


Description

The CA3161E is a monolithic integrated circuit that performs the BCD to seven segment decoding function and features constant current segment drivers. When used with the CA3162E A/D Converter the CA3161E provides a complete digital readout system with a minimum number of external parts.
