Features:

• Phase Locked Subcarrier Regeneration Utilizes Sample-and-Hold Techniques
• Automatic Chrominance Control (ACC)/Killer Detector Employs Sample-and-Hold Techniques
• Supplementary ACC with an Overload Detector to Prevent Oversaturation of this Picture Tube
• Sinusoidal Subcarrier Output
• Keyed Chroma Output
• Emitter Follower Buffered Outputs for Low Output Impedance
• Linear DC Saturation Control


Application

• TV/CATV Receiver Circuits
• NTSC Color Decoder/Processor
• Computer Graphics Subcarrier Regenerator
• Timing Reference for Frame Grabbers
• DSP Clock Timing Reference Source


Pinout

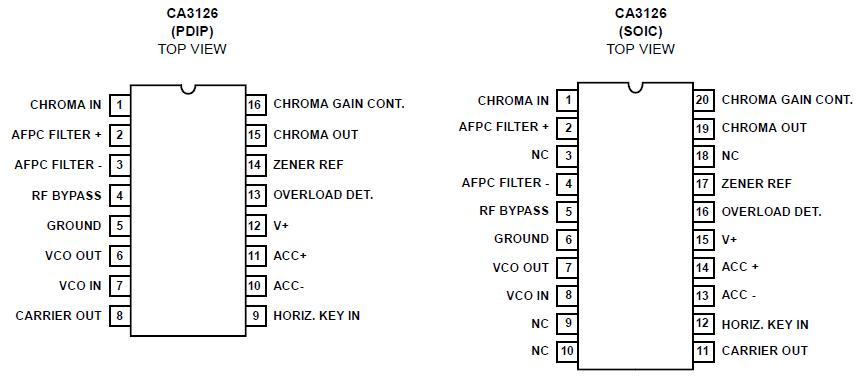

Connection Diagram


Specifications

DC Supply Voltage (V+ to GND) (Note 1). . . . . . . . . . . . . . . . . 13.2V
DC Current:
Into V+ Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38mA
Into Zener Reference Pin . . . . . . . . . . . . . . . . . . . . . . . . . . .20mA
DC Voltage (Horizontal Key In)
Negative Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -5V
Positive Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3V


Description

The Harris CA3126 is a monolithic silicon integrated circuit designed for TV chroma processing and is ideally suited for NTSC color graphic applications that require subcarrier regeneration of the color burst signal.
