Product Details

Description



Features:

` Very Tight Initial Voltage Tolerance
1004-1.2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±5mV
1004-2.5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±10mV
`Very Low Operating Current
1004-1.2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10A
1004-2.5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20A
`Wide Operating Current Range . . . . . . . . 10A to 20mA
`Very Low Dynamic Impedence. . . . . . . . . . . . . 0.6 Max.


Pinout

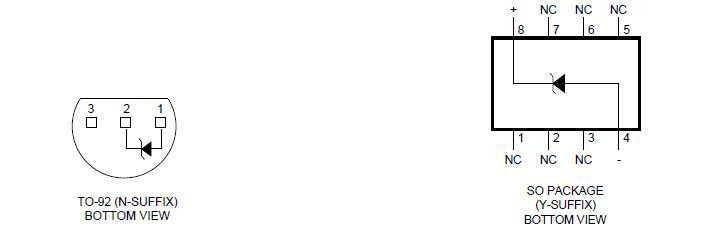

Connection Diagram




Specifications

Forward Current. . . . . . . . . . . . . . . . . . . . . . . . . .. 10mA
Reverse Current . . . . . . . . . . . . . . . . . . . . . . . . . . 30mA
Operating Temperature Range
TO-92 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to +70
SOIC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 to +85
Storage Temperature Range
TO-92 . . . . . . . . . . . . . . . . . . . . . . . . . . -65 to +150
SOIC. . . . . . . . . . . . . . . . . . . . . . . .  . . . -65 to +150
Lead Temperature (10 sec.). . . . . . . . . . . . .  . . . +300


Description

The CA1004 is a two-terminal, temperature compensated, micropower band-gap voltage reference, which provides a fixed voltage for a wide range of input currents (10A to 20mA). The high stability of the device is primarily the result of the low temperature coefficient Thin Film Resistor process and the tight output voltage tolerance is obtained by resistor Laser trimming at the wafer level. CA1004 gives the benefit of eliminating the need of external voltage adjustment.
