Features:

 Fully compatible to standard 8051 microcontroller
 Versions for 12 / 20 MHz operating frequency
 16 K x 8 ROM (SAB-C502-2R only)
 256 x 8 RAM
 256 x 8 XRAM (additional on-chip RAM)
Eight datapointers for indirect addressing of program and external data memory (including XRAM)
 Four 8-bit ports
 Three 16 -bit Timers / Counters (Timer 2 with Up/Down Counter feature)
 USART with programmable 10-bit Baudrate-Generator
 Six interrupt sources, two priority levels
 Programmable 15-bit Watchdog Timer
 Oscillator Watchdog
Fast Power On Reset
Power Saving Modes
P-DIP-40 package and P-LCC-44 package
 Temperature ranges: SAB-C502             TA: 0 °C to 70 °C
                                    SAF-C502              TA: 40 °C to 85 °C


Pinout

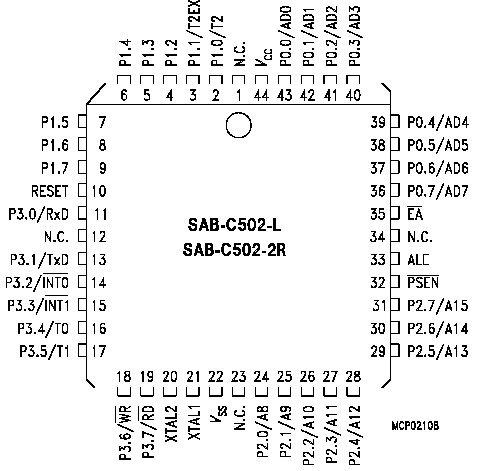

Connection Diagram


Specifications

Ambient temperature under bias (TA) ............................................................ 40 °C to + 85 °C
Storage temperature (TST) ............................................................................. 65 °C to + 150 °C
Voltage on VCC pins with respect to ground (VSS) ......................................... 0.5 V to 6.5 V
Voltage on any pin with respect to ground (VSS) ............................................ 0.5 V to VCC + 0.5 V
Input current on any pin during overload condition.......................................... 10 mA to + 10 mA
Absolute sum of all input currents during overload condition ..........................| 100 mA |
Power dissipation.............................................................................................TBD


Description

The SAB-C502-L/C502-2R described in this document is compatible with the SAB 80C52 and can be used for all present SAB 80C52 applications.

The SAB-C502-2R contains a non-volatile 16 K ´ 8 read-only program memory, a volatile 256 ´ 8 read/write data memory, four ports, three 16-bit timers/counters, a six source, two priority level interrupt structure, a serial port and versatile fail save mechanisms. The SAB-C502-L/C502-2R incorporates 256 ´ 8 additional on-chip RAM called XRAM. For higher performance eight datapointers are implemented. The SAB-C502-L is identical, except that it lacks the program memory on chip. Therefore the term SAB-C502 refers to both versions within this specification unless otherwise noted.
