C164CI

Features: • High Performance 16-bit CPU with 4-Stage Pipeline 80 ns Instruction Cycle Time at 25 MHz CPU Clock 400 ns Multiplication (16 * 16 bit), 800 ns Division (32 / 16 bit) Enhanced Boolean Bit Manipulation Facilities Additional Instructions to Support HLL and Operating Systems Register...

product image

C164CI Picture
See larger image
SeekIC No. : 004308037 Detail

C164CI: Features: • High Performance 16-bit CPU with 4-Stage Pipeline 80 ns Instruction Cycle Time at 25 MHz CPU Clock 400 ns Multiplication (16 * 16 bit), 800 ns Division (32 / 16 bit) Enhanced Boole...

C164CI Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
C164CI
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Performance 16-bit CPU with 4-Stage Pipeline
80 ns Instruction Cycle Time at 25 MHz CPU Clock
400 ns Multiplication (16 * 16 bit), 800 ns Division (32 / 16 bit)
Enhanced Boolean Bit Manipulation Facilities
Additional Instructions to Support HLL and Operating Systems
Register-Based Design with Multiple Variable Register Banks
Single-Cycle Context Switching Support
16 MBytes Total Linear Address Space for Code and Data
1024 Bytes On-Chip Special Function Register Area
• 16-Priority-Level Interrupt System with 32 Sources, Sample-Rate down to 40 ns
• 8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via Peripheral Event Controller (PEC)
• Clock Generation via on-chip PLL (factors 1:1.5/2/2.5/3/4/5), via prescaler or via direct clock input
• On-Chip Memory Modules
2 KBytes On-Chip Internal RAM (IRAM)
2 KBytes On-Chip Extension RAM (XRAM)
up to 64 KBytes On-Chip Program Mask ROM or OTP Memory
• On-Chip Peripheral Modules
8-Channel 10-bit A/D Converter with Programmable Conversion Time down to 7.8 s
8-Channel General Purpose Capture/Compare Unit (CAPCOM2)
Capture/Compare Unit for flexible PWM Signal Generation (CAPCOM6) (3/6 Capture/Compare Channels and 1 Compare Channel)
Multi-Functional General Purpose Timer Unit with 3 Timers
Two Serial Channels (Synchronous/Asynchronous and High-Speed-Synchronous)
On-Chip CAN Interface (Rev. 2.0B active) with 15 Message Objects (Full CAN/Basic CAN)
On-Chip Real Time Clock
• Up to 4 MBytes External Address Space for Code and Data
Programmable External Bus Characteristics for Different Address Ranges
Multiplexed or Demultiplexed External Address/Data Buses with 8-Bit or 16-Bit Data Bus Width
Four Optional Programmable Chip-Select Signals
• Idle, Sleep, and Power Down Modes with Flexible Power Management
• Programmable Watchdog Timer and Oscillator Watchdog
• Up to 59 General Purpose I/O Lines, partly with Selectable Input Thresholds and Hysteresis
• Supported by a Large Range of Development Tools like C-Compilers, Macro-Assembler Packages, Emulators, Evaluation Boards, HLL-Debuggers, Simulators, Logic Analyzer Disassemblers, Programming Boards
• On-Chip Bootstrap Loader
• 80-Pin MQFP Package, 0.65 mm pitch


Pinout

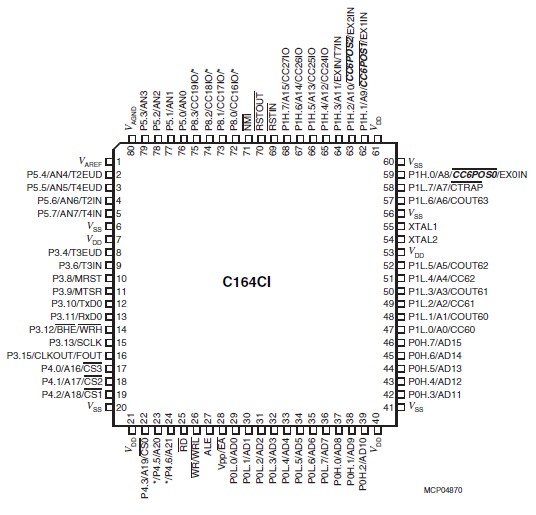

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
Notes
min.
max.
Storage temperature
TST
-65
150
°C
-
Junction temperature
TJ
-40
150
°C
under bias
Voltage on VDD pins with
respect to ground (VSS)
VDD
-0.5
6.5
V
-
Voltage on any pin with
respect to ground (VSS)
VIN
-05
VDD + 0.5
V
-
Input current on any pin
during overload condition
-
-10
10
mA
-
Absolute sum of all input
currents during overload
condition
-
-
|100|
mA
-
Power dissipation
PDISS
-
1.5
W
-
Note: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. During absolute maximum rating overload conditions (VIN > VDD or VIN < VSS) the voltage on VDD pins with respect to ground (VSS) must not exceed the values defined by the absolute maximum ratings.
