Features: ` High Performance 16-bit CPU with 4-Stage Pipeline` 125 ns Instruction Cycle Time at 16 MHz CPU Clock` 625 ns Multiplication (16 ´ 16 bits), 1.25 ms Division (32 / 16 bit)` Enhanced Boolean Bit Manipulation Facilities` Additional Instructions to Support HLL and Operating Systems` ...

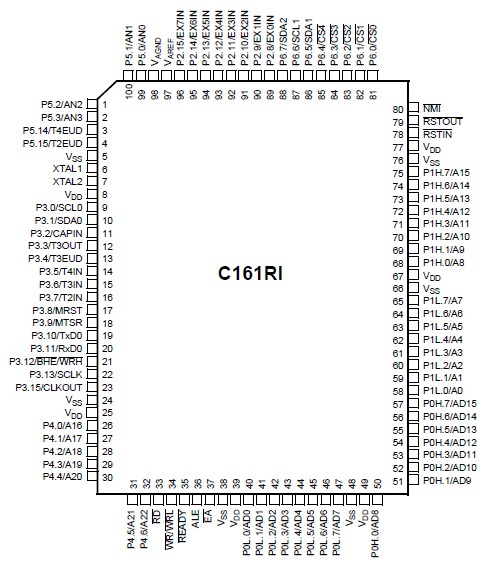

C161RI: Features: ` High Performance 16-bit CPU with 4-Stage Pipeline` 125 ns Instruction Cycle Time at 16 MHz CPU Clock` 625 ns Multiplication (16 ´ 16 bits), 1.25 ms Division (32 / 16 bit)` Enhanced...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
SAB-C161RI .............................................................................................................0 to + 70 °C
SAF-C161RI ....................................................................................................... 40 to + 85 °C
Storage temperature (TST)................................................................................ 65 to + 150 °C
Voltage on VDD pins with respect to ground (VSS) ................................................. 0.5 to + 6.5 V
Voltage on any pin with respect to ground (VSS) ............................................ 0.5 to VDD + 0.5 V
Input current on any pin during overload condition................................................ 10 to + 10 mA
Absolute sum of all input currents during overload condition .............................................|100 mA|
Power dissipation..................................................................................................................1.5 W
Note: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
During absolute maximum rating overload conditions (VIN > VDD or VIN < VSS) the voltage on VDD pins with respect to ground (VSS) must not exceed the values defined by the absolute maximum ratings.
