Features:

• Fully PCI Rev. 2.1 compliant
• Auxiliary GPIO data port and video data port
• Supports image resolutions up to 768x576 (full PAL resolution)
• Supports complex clipping of video source
• Zero wait state PCI burst writes
• Field/frame masking support to throttle bandwidth to target
• Multiple YCrCb and RGB pixel formats supported on output
• Supports NTSC/SECAM/PAL analog input
• Image size scalable down to icon using vertical & horizontal interpolation filtering
• Multiple composite and S-video inputs
• Supports different destinations for even and odd fields
• Supports different color space/scaling factors for even and odd fields
• Support for mapping of video to 225 color palette
• VBI data capture for closed captioning, teletext and intercast data decoding


Application

• PC TV
• Intercast receiver
• Desktop video phone
• Motion video capture
• Still frame capture
• Teletext/Intertext
• VBI data services capture


Pinout

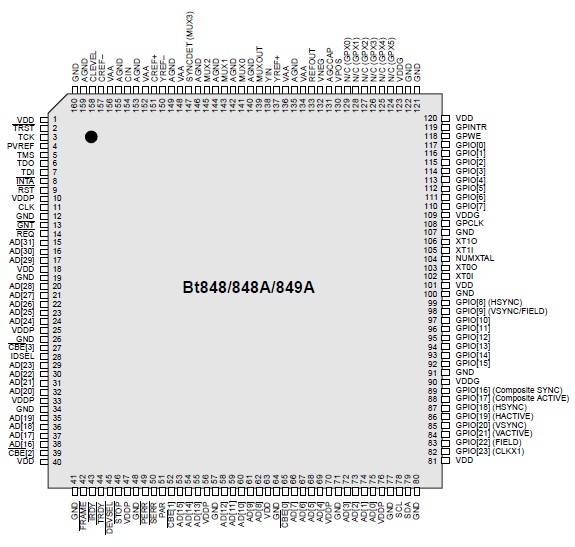

Connection Diagram


Specifications

 Parameter  Symbol  Min  Max  Units
 VAA (measured to AGND)  VAA , VPOS    7.00 V
 VDD  (measured to GND)  VDD, VDDP, VDDG    7.00  V
Voltage on any signal pin (1)    DGND 0.5  VDD  + 0.5  V
 Analog Input Voltage    AGND 0.5  VAA  + 0.5
  V
 Ambient Operating Temperature  TA  0  +70
 Storage Temperature  TS  -65  +150
 Junction Temperature  TJ    +125
 Vapor Phase Soldering (15 Seconds)  TVSOL    +220

Notes:(1). Stresses above those listed may cause permanent damage to the device. This is a stress rating only, and functional operation at these or any other conditions above those listed in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

          (2). This device employs high-impedance CMOS devices on all signal pins. It must be handled as an ESD-sensitive device. Voltage on any signal pin that exceeds the power supply voltage by more than +0.5 V or drops below ground by more than 0.5 V can induce destructive latchup.
