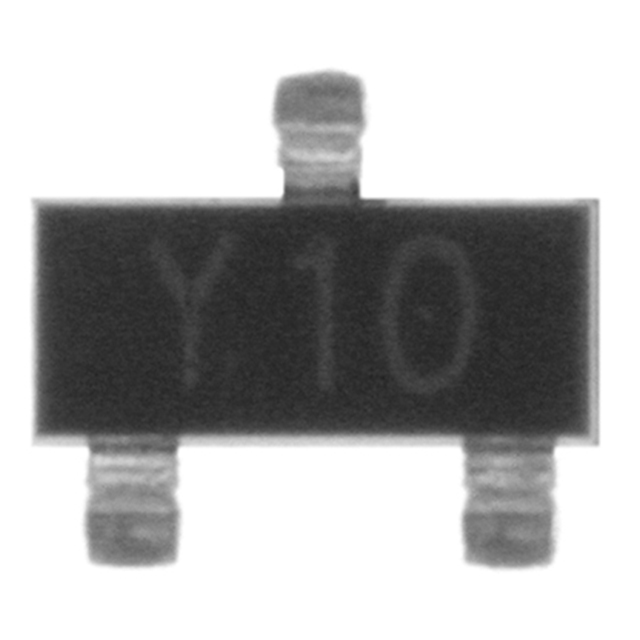

See larger image

SeekIC No. : 00274495 Detail

BZX84C27TS-7-F: Zener Diodes 200MW 27V

BZX84C27TS-7-F Data Sheet

US $ .13~.3 / Piece | Get Latest Price

Part Number:: BZX84C27TS-7-F
Mfg:: Diodes Inc.
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~250

Unit Price
$.3
$.23
$.16
$.13

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

BZX83C2V7 evaluate
Specifications DESCRIPTION Symbol Value Unit Power Dissipation PTA 500 mW Junctio...
BZX84 evaluate
Features: • These diodes are also available in other case styles and other configurations in...
BZX84A evaluate

Product Details

Quick Details

Zener Voltage :	27 V	Voltage Tolerance :	7 %
Voltage Temperature Coefficient :	23.35 mV/deg C	Power Dissipation :	200 mW
Maximum Reverse Leakage Current :	0.1 uA	Maximum Zener Impedance :	80 Ohms
Maximum Operating Temperature :	+ 150 C	Mounting Style :	SMD/SMT
Package / Case :	SOT-363	Packaging :	Reel

Description

Zener Current :
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Maximum Reverse Leakage Current : 0.1 uA
Maximum Zener Impedance : 80 Ohms
Zener Voltage : 27 V
Power Dissipation : 200 mW
Voltage Tolerance : 7 %
Package / Case : SOT-363
Voltage Temperature Coefficient : 23.35 mV/deg C

Parameters:

Technical/Catalog Information	BZX84C27TS-7-F
Vendor	Diodes Inc (VA)
Category	Discrete Semiconductor Products
Configuration	3 Independent
Voltage - Zener (Nom) (Vz)	27V
Power - Max	200mW
Impedance (Max) (Zzt)	80 Ohm
Voltage - Forward (Vf) (Max) @ If	900mV @ 10mA
Current - Reverse Leakage @ Vr	100nA @ 18.9V
Tolerance	±6%
Mounting Type	Surface Mount
Package / Case	SC-70-6, SC-88, SOT-323-6, SOT-363
Packaging	Digi-Reel?
Operating Temperature	-65°C ~ 150°C
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BZX84C27TS 7 F BZX84C27TS7F BZX84C27TS FDIDKR ND BZX84C27TSFDIDKRND BZX84C27TS-FDIDKR
