Product Details

Description



Features:

* Glass passivated
* High maximum operating temperature
* Low leakage current
* Excellent stability
* Guaranteed avalanche energy absorption capability.


Application

* Car ignition systems
* Automotive applications with extreme temperature requirements.


Pinout

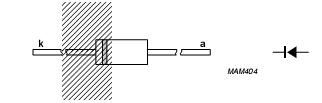

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM repetitive peak reverse voltage 4 kV
VRWM working reverse voltage 4 kV
IF(AV) average forward current 50 mA
IRSM non-repetitive peak forward current  t = 100 s triangular pulse;
Tj max prior to surge		 50 MA
Tstg storage temperature -65 175
Tj junction temperature

continuous



175



Description

Rugged glass package, BYX134GP is using a high temperature alloyed construction.

The SOD107A is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.

BYX134GP is designed to be used in an insulating medium such as resin, oil or SF6 gas.
