Product Details

Description



Features:

* Glass passivated
* High maximum operating temperature
* Low leakage current
* Excellent stability
* Guaranteed avalanche energy absorption capability
* Available in ammo-pack
* Also available with preformed leads for easy insertion.

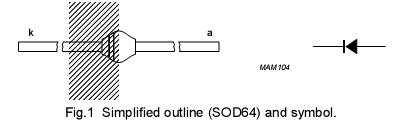

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM repetitive peak reverse voltage 600 V
VR continuous reverse voltage 600 V
I F(AV) working peak forward current Ttp =60 °C; lead length = 10 mm
see Fig.2;
averaged over any 20 ms period;
see also Fig.6
Tamb =65 °C; PCB mounting (see
Fig.11); see Fig.3;
averaged over any 20 ms period;
see also Fig.6

3.00


1.25

 A
I FRM repetitive peak forward current Ttp =60 °C; see Fig.4
Tamb =65 °C; see Fig.5		 30
13		 A
IFSM non-repetitive peak forward current t = 10 ms half sinewave;
Tj =Tj max prior to surge;
VR =VRRMmax		 70

 A
ERSM non-repetitive peak reverse
avalanche energy		 L = 120 mH; Tj =Tj max prior to
surge; inductive load switched off

10

 MJ
Tstg storage temperature -65 +175
Tj operating junction temperature -65 +175



Description

Rugged glass SOD64 package, using a high temperature alloyed construction. BYW95C is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.
