BYV99

Features: * Glass passivated* Low leakage current* Excellent stability* Guaranteed avalanche energy absorption capability* Available in ammo-pack.PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VRRM repetitive peak reverse voltage 600 V VR continuous revers...

product image

BYV99 Picture
See larger image
SeekIC No. : 004305987 Detail

BYV99: Features: * Glass passivated* Low leakage current* Excellent stability* Guaranteed avalanche energy absorption capability* Available in ammo-pack.PinoutSpecifications SYMBOL PARAMETER CONDITI...

BYV99 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BYV99
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Glass passivated
* Low leakage current
* Excellent stability
* Guaranteed avalanche energy absorption capability
* Available in ammo-pack.

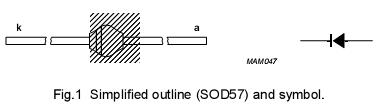

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM repetitive peak reverse voltage 600 V
VR continuous reverse voltage 600  V
I F(AV) average forward current Ttp =50 °C; lead length = 10 mm see Fig. 2;
averaged over any 20 ms period; see also Fig. 6
Tamb =60 °C; PCB mounting (see Fig.10); see Fig. 3;
averaged over any 20 ms period;
see also Fig. 6

1.00



0.55


 A
IFRM repetitive peak forward current Ttp =50 °C; see Fig. 4
Tamb =60 °C; see Fig. 5
 9
5
 A
IFSM non-repetitive peak forward current t = 10 ms half sine wave;
Tj =Tj max prior to surge;
VR =VRRMmax
 20 A
E RSM non-repetitive peak reverse avalanche energy L = 120 mH; Tj =Tj max prior to surge; inductive load switched off 10 mJ
Tstg storage temperature -65 +175
Tj operating junction temperature see Fig.7 -65 +150



Description

Rugged glass SOD57 package, BYV99 is using a high temperature alloyed construction.

BYV99 is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.
