BYV79-200

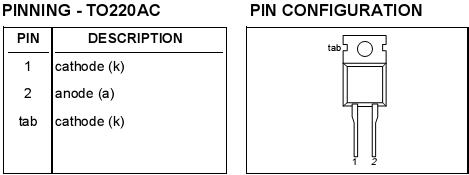

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
VRRM	Peak repetitive reverse Voltage			200	V
VRWM	Working peak reverse voltage			200	V
VR	continuous reverse voltage			200	V
I F(AV)	Average forward current2	square wave; = 0.5; Tmb 120 sinusoidal; a = 1.57;Tmb 122		14 12.7	A
I F(RMS)	RMS forward current			20	A
I FRM	repetitive peak forward current	t = 25 s; = 0.5;Tmb120		28	A
IFSM	non-repetitive peak forward current	t = 10 ms t = 8.3 ms sinusoidal; with reapplied VRRMmax)		150 160	A

I2t	I2t for fusing	t = 10 ms		112	A2s
Tstg	storage temperature		-65	+175
Tj	operating junction temperature			+150

Description

Glass passivated high efficiency rectifier BYV79-200 diodes in a plastic envelope, featuring low forward voltage drop, ultra-fast recovery times and soft recovery characteristic. BYV79-200 are intended for use in switched mode power supplies and high frequency circuits in general where low conduction and switching losses are essential.
