Product Details

Description



Features:

* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* High thermal cycling performance
* Low thermal resistance

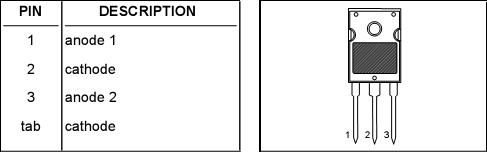

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM Peak repetitive reverse voltage -300 -400 -500 V
VRWM Crest working reverse voltage 300 400 500 V
VR Continuous reverse voltage Tmb 117 300 400 500 V
I o(AV) average forward current square wave;  = 0.5;Ths 54 30 A
IFRM repetitive peak forward current t = 25 s; = 0.5;Ths   54 30 A
IFSM non-repetitive peak forward current t = 10 ms
t = 8.3 ms
sinusoidal; with reapplied
VRRM(max)		 150
160
 A
ERSM non-repetitive peak reverse
avalanche energy
10 mJ
Tstg storage temperature -40 +150
Tj operating junction temperature 150



Description

Dual, common cathode, ultra-fast, epitaxial rectifier BYV74W diodes intended for use as output rectifiers in high frequency switched mode power supplies.

The BYV74W series is supplied in the conventional leaded SOT429 (TO247) package.
