BYV40E-200

Features: * Low forward volt drop* Fast switching* Soft recovery characteristic* Reverse surge capability* High thermal cycling performance* low profile surface mounting packagePinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VRRM Peak repetitive reverseVoltage 2...

product image

BYV40E-200 Picture
See larger image
SeekIC No. : 004305943 Detail

BYV40E-200: Features: * Low forward volt drop* Fast switching* Soft recovery characteristic* Reverse surge capability* High thermal cycling performance* low profile surface mounting packagePinoutSpecifications ...

BYV40E-200 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BYV40E-200
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* Reverse surge capability
* High thermal cycling performance
* low profile surface mounting package


Pinout

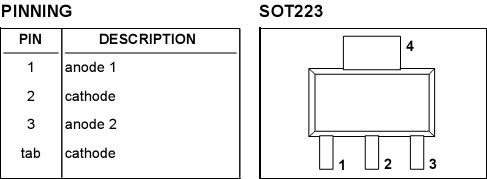

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM Peak repetitive reverse
Voltage		 200 V
VRWM Working peak reverse
voltage		 200  V
VR continuous reverse voltage 200  V
I O(AV) Average rectified output
current (both diodes
conducting)		 square wave; = 0.5; Tmb 104

1.5

 A
I FRM repetitive peak forward current square wave;= 0.5; Tmb 104 1.5 A
IFSM non-repetitive peak forward current t = 10 ms
t = 8.3 ms
sinusoidal; with reapplied VRRMmax)
 6
6.6


 A
I RRM Peak repetitive reverse
surge current		 tp = 2 s; = 0.001 0.1 A
I RSM Peak non-repetitive reverse
surge current		 tp = 100 s 0.1 A
Tstg storage temperature -65 +150
Tj operating junction temperature +150



Description

Dual, common cathode, ultra-fast epitaxial rectifier BYV40E-200 diodes intended for use as output rectifiers in high frequency switched mode power supplies.

The BYV40E series is supplied in the SOT223 surface mounting package.
