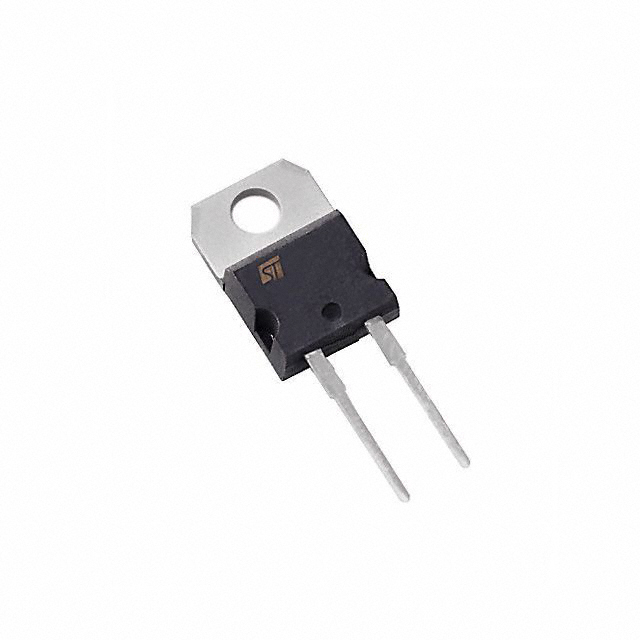

BYT12PI-1000

Series: -
Diode Type: Standard
Current - Average Rectified (Io) (per Diode): -
Speed: Fast Recovery = 200mA (Io)
Diode Configuration: -
Mounting Type: Through Hole
Voltage - DC Reverse (Vr) (Max): 1000V (1kV)
Capacitance @ Vr, F: -
Packaging: Bulk
Current - Average Rectified (Io): 12A
Supplier Device Package: TO-220AC
Manufacturer: STMicroelectronics
Package / Case: TO-220-2 Insulated, TO-220AC
Current - Reverse Leakage @ Vr: 50µA @ 1000V
Voltage - Forward (Vf) (Max) @ If: 1.9V @ 12A
Reverse Recovery Time (trr): 155ns


Features:

·VERY HIGH REVERSE VOLTAGE CAPABILITY
·VERY LOW REVERSE RECOVERY TIME
·VERY LOW SWITCHING LOSSES
·LOW NOISE TURN-OFF SWITCHING
·INSULATED: Capacitance 7pF


Application

·FREE WHEELING DIODE IN CONVERTERS AND MOTOR CONTROL CIRCUITS
·RECTIFIER IN S.M.P.S.


Specifications

Symbol	Parameter		Value	Unit
VRRM VRSM IFRM IF (RMS)	Repetitive Peak Reverse Voltage Non Repetitive Peak Reverse Voltage Repetitive Peak Forward Current tp  10s RMS Forward Current		1000 1000 100	V V A
IF (RMS) IF (AV) IFSM	RMS Forward Current Average Forward Current Surge Non Repetitive Forward Current	Tc = 50°C = 0.5 tp = 10ms Sinusoidal	25 12 75 25 - 40 to + 150 - 40 to + 150	A A A W °C
P	Power Dissipation	Tc = 50°C
Tstg Tj	Storage and Junction Temperature Range
