Features:

* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* Reverse surge capability
* High thermal cycling performan
* Low thermal resistance


Pinout

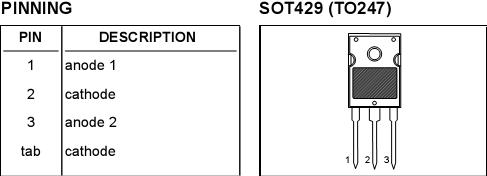

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM Peak repetitive reverse
Voltage		 150 V
VRWM Working peak reverse
voltage		 150  V
VR continuous reverse voltage 150  V
I O(AV) Average rectified output
current (both diodes
conducting)		 square wave; = 0.5; Tmb 104

60

 A
I FRM repetitive peak forward current square wave;= 0.5; Tmb 104 60 A
IFSM non-repetitive peak forward current t = 10 ms
t = 8.3 ms
sinusoidal; with reapplied VRRMmax)
 380
414


 A
I RRM Peak repetitive reverse
surge current		 tp = 2 s; = 0.001 0.2 A
I RSM Peak non-repetitive reverse
surge current		 tp = 100 s 0.2 A
Tstg storage temperature -40 +150
Tj operating junction temperature +150



Description

Dual, common cathode, ultra-fast, epitaxial rectifier BYQ60EW-150 diodes intended for use as output rectifiers in high frequency switched mode power supplies.

The BYQ60EW BYQ60EW-150 series is supplied in the conventional leaded SOT429 (TO247) package.
