Product Details

Description



Features:

* Glass passivated
* Low leakage current
* Excellent stability
* Guaranteed avalanche energy absorption capability
* Available in ammo-pack
* Also available with preformed leads for easy insertion.

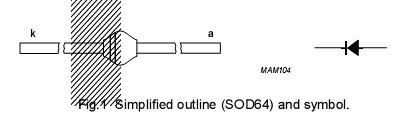

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM repetitive peak reverse voltage 600 V
VR continuous reverse voltage 600 V
I F(AV) average forward current averaged over any 20 ms period;
Ttp = 55 °C; lead length = 10 mm;
see Fig.2; see also Fig.4
averaged over any 20 ms period;
Tamb = 65 °C;
PCB mounting (Fig.8);
see Fig.3; see also Fig.4		 1.8


0.8		 A
IFRM repetitive peak forward current Ttp = 55 °C
Tamb = 65 °C		 15
7		 A
IFSM non-repetitive peak forward current t = 10 ms half sine wave;
Tj = Tj max prior to surge;
VR = VRRMmax		 40 A
Tstg storage temperature -65 +175
Tj operating junction temperature -65 +175



Description

Rugged glass SOD64 package, BYM99 is using a high temperature alloyed construction.

BYM99 is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.
