BYM63

Features: * Glass passivated* High maximum operating temperature* Low leakage current* Excellent stability* Guaranteed minimum turn-on time for absorbing forward current transients and oscillations* Specially designed as rectifier in the auxiliary power supply in e.g. switched mode power supplies*...

product image

BYM63 Picture
See larger image
SeekIC No. : 004305629 Detail

BYM63: Features: * Glass passivated* High maximum operating temperature* Low leakage current* Excellent stability* Guaranteed minimum turn-on time for absorbing forward current transients and oscillations*...

BYM63 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BYM63
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Glass passivated
* High maximum operating temperature
* Low leakage current
* Excellent stability
* Guaranteed minimum turn-on time for absorbing forward current transients and oscillations
* Specially designed as rectifier in the auxiliary power supply in e.g. switched mode power supplies
* Available in ammo-pack.
* Also available with preformed leads for easy insertion.


Pinout

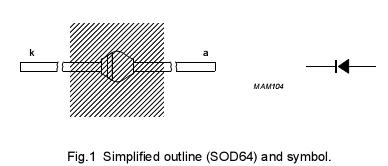

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM repetitive peak reverse voltage 300 V
VR continuous reverse voltage 300 V
I F(AV) average forward current averaged over any 20 ms period;
Ttp = 55 °C; lead length = 10 mm;
see Fig.2; see also Fig.4
averaged over any 20 ms period;
Tamb = 65 °C;
PCB mounting (Fig.8);
see Fig.3; see also Fig.4		 2.4


1.0		 A
IFRM repetitive peak forward current Ttp = 55 °C
Tamb = 65 °C		 21
8.5		 A
IFSM non-repetitive peak forward current t = 10 ms half sine wave;
Tj = Tj max prior to surge;
VR = VRRMmax		 45
 A
Tstg storage temperature -65 +175
Tj operating junction temperature -65 +175



Description

Rugged glass SOD64 package, using a high temperature alloyed construction.
BYM63 is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.
