BYM36G

Features: * Glass passivated* High maximum operating temperature* Low leakage current* Excellent stability* Guaranteed avalanche energy absorption capability* Available in ammo-pack* Also available with preformed leads for easy insertion.PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN...

product image

BYM36G Picture
See larger image
SeekIC No. : 004305622 Detail

BYM36G: Features: * Glass passivated* High maximum operating temperature* Low leakage current* Excellent stability* Guaranteed avalanche energy absorption capability* Available in ammo-pack* Also available ...

BYM36G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BYM36G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Glass passivated
* High maximum operating temperature
* Low leakage current
* Excellent stability
* Guaranteed avalanche energy absorption capability
* Available in ammo-pack
* Also available with preformed leads for easy insertion.


Pinout

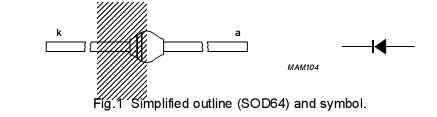

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM repetitive peak reverse voltage 200 V
VR crest working reverse voltage 200 V
I F(AV) average forward current Ttp =55 °C; lead length = 10 mm;
see Figs 2; 3 and 4
averaged over any 20 ms period;
see also Figs 14; 15 and 16		 3.0 A
I F(AV) average forward current Tamb =65 °C; PCB mounting (see
Fig.25); see Figs 5; 6 and 7
averaged over any 20 ms period;
see also Figs 14; 15 and 16		 1.25 A
IFRM repetitive peak forward current Ttp =55 °C; see Figs 8; 9 and 10 37 A
IFRM repetitive peak forward current Tamb =65 °C; see Figs 11; 12 and 13 13 A
IFSM non-repetitive peak forward current t = 10 ms half sine wave; Tj =Tj max
prior to surge; VR =VRRMmax		 65 A
ERSM non-repetitive peak reverse
avalanche energy		 L = 120 mH; Tj =Tj max prior to surge;
inductive load switched off		 10 mJ
Tstg storage temperature -65 +175
Tj operating junction temperature see Figs 17 and 18 175



Description

Rugged glass SOD64 package, BYM36G using a high temperature alloyed construction.

BYM36G is hermetically sealed and fatigue free as coefficients of  expansion of all used parts are matched.
