BYM358DX

Features: * Low forward volt drop* Ultra fast switching* Soft recovery characteristic* High thermal cycling performance* Isolated mounting tabPinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN MAX MIN MAX UNIT VRSM Peak non-repetitive reverse voltage. - 1500 - 600 V ...

product image

BYM358DX Picture
See larger image
SeekIC No. : 004305611 Detail

BYM358DX: Features: * Low forward volt drop* Ultra fast switching* Soft recovery characteristic* High thermal cycling performance* Isolated mounting tabPinoutSpecifications SYMBOL PARAMETER CONDITIONS ...

BYM358DX Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BYM358DX
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Low forward volt drop
* Ultra fast switching
* Soft recovery characteristic
* High thermal cycling performance
* Isolated mounting tab

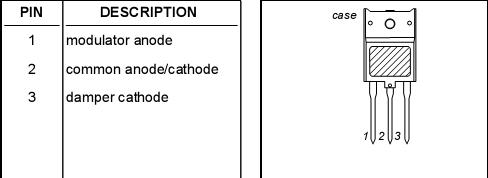

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN MAX MIN MAX UNIT
VRSM Peak non-repetitive reverse voltage. - 1500 - 600 V
VRRM Peak repetitive reverse voltage 1500 600 V
VRWM Crest working reverse voltage - 1300 - 600 V
I F(peak) Peak forward current 31-70 kHz monitor. 7 7 A
I F(RMS) RMS forward current sinusoidal;a=1.57 - 15.7 - 14.1 A
IFSM Peak non-repetitive forward current t = 10 ms 60 70 A
t = 8.3 ms - 66 - 77
sinusoidal;with reapplied
VRWM(MAX) - -
Tstg Storage temperature -40 150 -40 150 ˚C
TJ Operating junction temperature - 150 - 150 ˚C



Description

Combined damper and modulator diodes in an isolated plastic envelopeforhorizontaldeflectionin PC monitors. The BYM358DX contains diodes with performance characteristics   designed specifically for  applications from32kHzto120kHz

The BYM358DX series is supplied intheconventionalleadedSOT399 package.
