Product Details

Description



Features:

* Extremely fast switching
* Low reverse recovery current
* Low thermal resistance
* Reduces switching losses in associated MOSFET


Application

* Active power factor correction
* Half-bridge lighting ballasts
* Half-bridge/ full-bridge  switched mode power supplies.

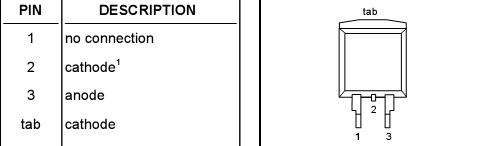

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM repetitive peak reverse voltage 600 V
VRRM repetitive peak reverse voltage 600 V
VR continuous reverse voltage Tmb110
500 V
I F(AV) average forward current = 0.5; with reapplied V RRM(max) ;
 Tmb 82		 8 A
IFRM Repetitive peak forward current  = 0.5; with reapplied V RRM(max) ;
 Tmb 82		 16 A
IFSM non-repetitive peak forward current t = 10 ms
t = 8.3 ms
sinusoidal; Tj = 150 prior to surge with reapplied V RWM(max)		 55
60

 A
Tstg storage temperature -40 150
Tj operating junction temperature 150



Description

The BYC8B-600 is supplied in the SOT404 surface mounting package.
