BY559X-1500U

Features:

* Low forward volt drop
* Low forward recovery voltage
* Ultra Fast switching
* Soft recovery characteristic
* High thermal cycling performance
* Low thermal resistance

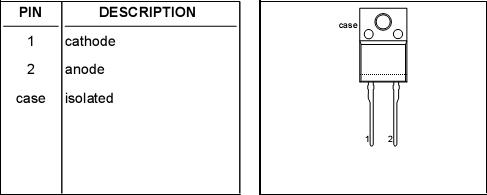

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
VRRM	Peak repetitive reverse voltage			1500	V
VRWM	Crest working reverse voltage			1300	V
I FWM	Peak working forward current	f = 120 kHz;		10	A
I FRM	Peak repetitive forward current	t = 100 s		150	A
IFSM	Peak non-repetitive forward current	t = 10 ms sinusoidal; Tj = 150  prior to surge; with reapplied VRWM(max)		160	A

Tstg	storage temperature		-40	+150
Tj	operating junction temperature			+150

Description

A double diffused rectifier diode BY559X-1500U in a plastic envelope, featuring ultra fast forward and reverse recovery andlowforwardvoltage.The device is intended for use as a damper diode in horizontal deflection circuits of large screen monitors and work stations in applications up to 150kHz.

The BY559 series is supplied in the conventional leaded SOD59 and SOD113 packages.
