Features:

* Glass passivated
* High maximum operating temperature
* Low leakage current
* Excellent stability
* Soft-recovery switching characteristics
* Compact construction.


Application

* High-voltage applications for:
High frequencies
Switching applications.


Pinout

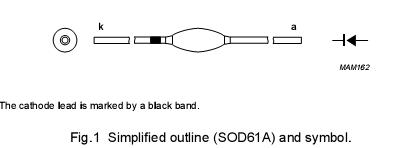

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRSM non-repetitive peak
reverse voltage		 2200 V
VRRM repetitive peak reverse voltage 2200 V
VRW continuous reverse voltage 2000 V
I F(AV) average forward current averaged over any 20 ms period;
Ttp =25 °C; lead length = 10 mm;
see Fig.2; see also Fig.4
averaged over any 20 ms period;
Tamb =60 °C; PCB mounting
(see Fig.6); see Fig.3;
see also Fig.4

85


50

 MA
I FRM repetitive peak forward current 800 MA
IFSM non-repetitive peak forward current t = 10 ms half sinewave;
Tj =Tj max prior to surge;
VR =VRRMmax		 5
 A
Tstg storage temperature -65 +120
Tj operating junction temperature -65 +120



Description

Rugged glass package, BY505 using a high temperature alloyed construction.

BY505 is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.

BY505 is designed to be used in an insulating medium such as resin, oil or SF6 gas.
